Place of Origin:
Shandong,China
Brand Name:
Fullwin
Certification:
EPA/ISO/CE/SGS
Model Number:
FW10B
Contact Us

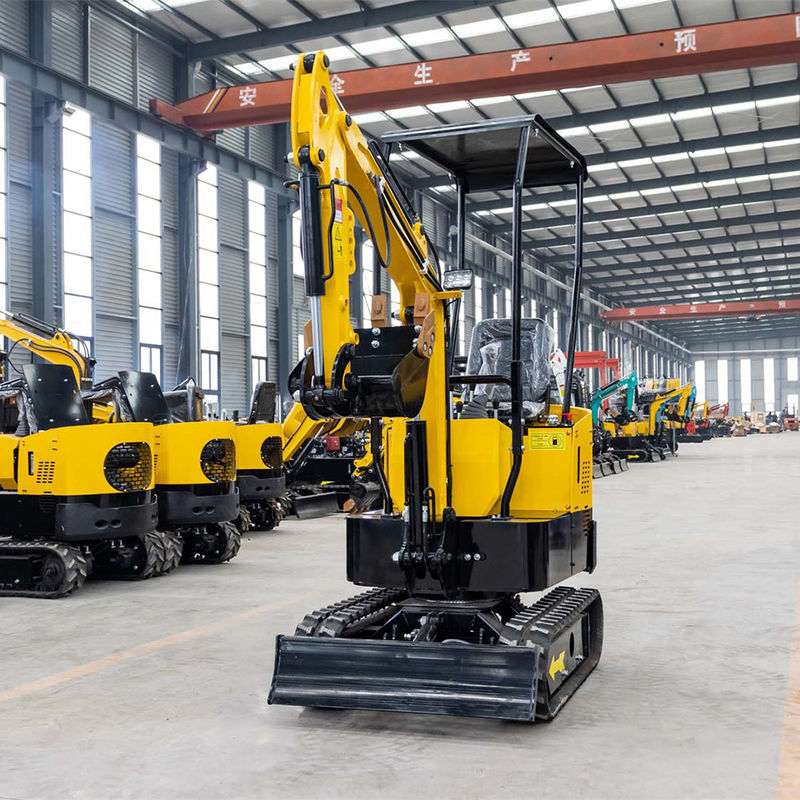

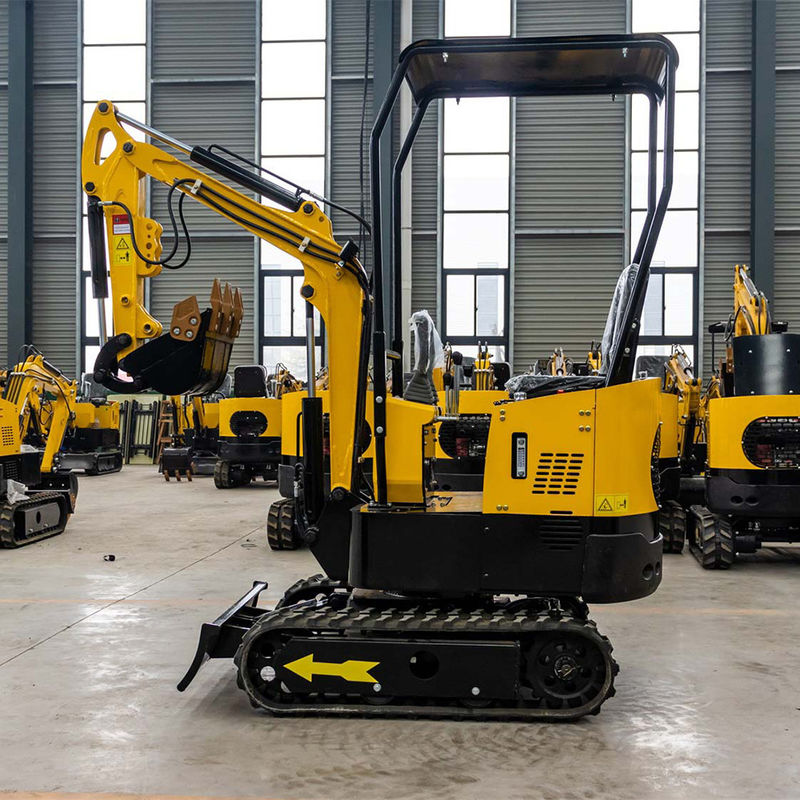

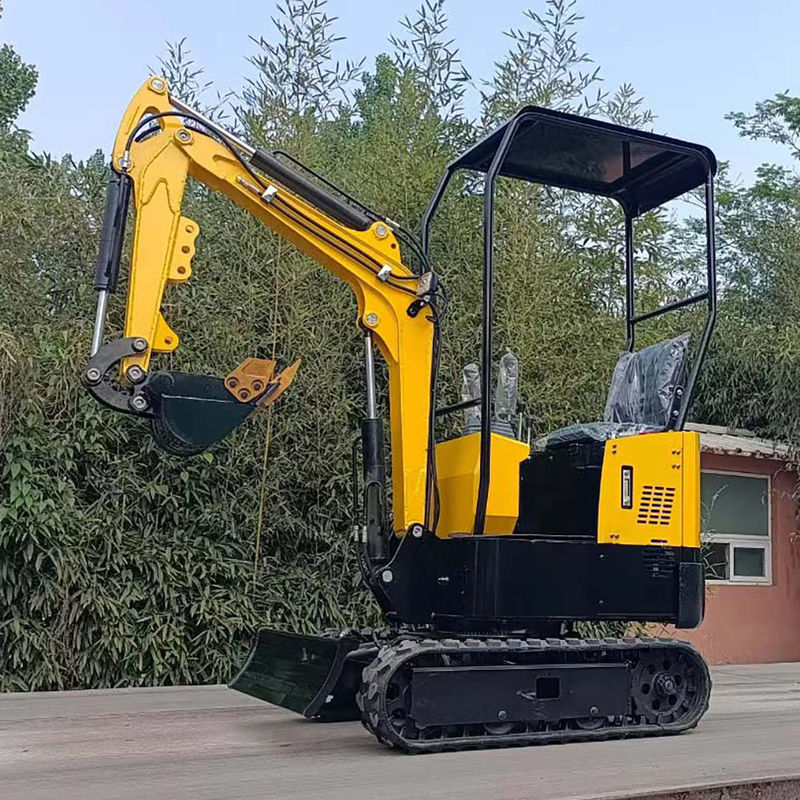

Fullwin Hydraulic Crawler Excavator 1000kg 1 Ton Mini Digger Excavator Reference FOB Price
| Model 10B FW10B | |
| Operating Weight | 1000kg |
| Digging Bucket Capacity | 0.025cbm/120kg |
| Bucket Width | 380mm |
| Engine | koop192f |
| Optional Engine | briggs&stratton |
| Bore Stroke | single cylinder |
| Rated Power | 7kw/3000r/min |
| Main Pump | g5-6 |
| Displacement | 6.8ml/r |
| Travel Speed | 3km/h |
| Main demensions | |
| Overall Dimension (L*W*H) | 2775*930*2219mm |
| Wheelbase | 910mm |
| Total Length Of Track | 1230mm |
| Platform Ground Clearance | 380mm |
| Platform Back Turning Radius | 784mm |
| Chassis Width | 896mm |
| Track Width | 180mm |
| Chassis Ground Clearance | 132mm |
| Track Height | 320mm |
| Operating range | |
| max.digging depth | 1750mm |
| max.vertical digging depth | 1375mm |
| max.digging height | 2610mm |
| max.dumping height | 1850mm |
| max.digging radius on ground | 2850mm |
| min.rotation radius | 1330mm |
| max.upgrade height of bulldozer blade | 345mm |
| max.digging depth of bulldozer blade | 255mm |
