Place of Origin:
Shandong, China
Brand Name:
None
Certification:
CE/ISO9001: 2000/EPA/Euro 5/SGS
Model Number:
FW12
Contact Us

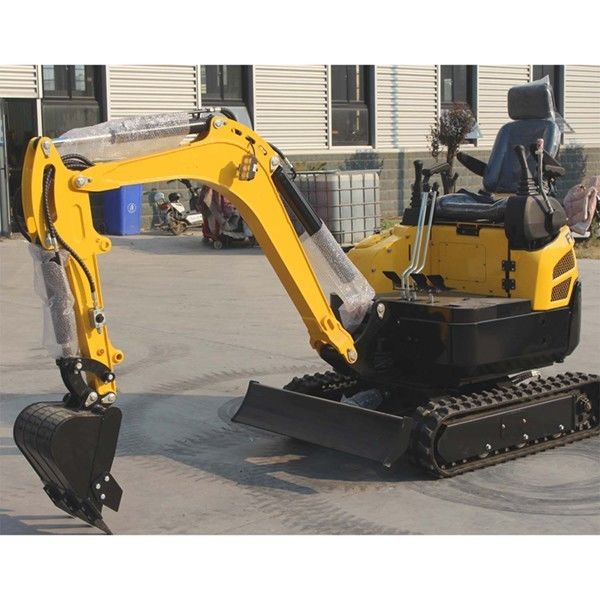

1200Kg Cheap Micro Digger 1.2T Mini Crawler Excavator Prices
Quick Detail:
1. Powerful Engine, KOOP diesel engine/Euro V engine/EPA certified gasoline /Kubota engine for your choices;
2. Adopt the famous hydraulic Shut-off valve;
3. The boom and the bulldozer oil cylinder are equipped with high-strength cast steel protective plates;
4. Dig-to-blade and dozer float features are easy to clean up;
5. Strong lift and dig performance helps you to get the job done faster;
6. Auger, grab, hydraulic hammer, and narrow bucket can be installed;
7. Hydraulic pilot operation is more flexible and convenient.
Specifications:
| Specifications | |
| Weight | 1000kg |
| Digging Bucket Capacity | 0.025cbm/120kg |
| Bucket Width | 380mm |
| Engine | Kubata D722 |
| Bore Stroke | Three Cylinders, Water Cool |
| Rated Power | 10.2KW/2500r/min |
| Main Pump | Japan KDW5-6 |
| Valve | Italy |
| Displacement | 6.8ml/r |
| Swing Motor | China Brand |
| Traveling Motor | China Brand USA EATON (Optional) |
| Travel Speed | 1.5km/h |
| Size | 2775×930× 2219 mm |
| Wheelbase | 830-1000mm |
| Total Length Of Track | 1230mm |
| Platform Ground Clearance | 380 mm |
| Platform Back Turning Radius | 784 mm |
| Chassis Width | 896 mm |
| Track Width | 180 mm |
| Chassis Ground Clearance | 132 mm |
| Track Height | 320 mm |
| Max.digging depth | 1650 mm |
| Max.vertical digging depth | 1375 mm |
| Max.digging height | 2610 mm |
| Max.dumping height | 1850 mm |
| Max.digging radius on ground | 2850 mm |
| Min.rotation radius | 1330 mm |
| Max.upgrade height of bulldozer blade | 345 mm |
| Max.digging depth of bulldozer blade | 255 mm |
Applications:
The main uses of the excavator: in road construction projects to excavate trenches, in construction projects to excavate the foundation, in water conservancy projects to excavate ditches, canals, and dredging rivers, in quarries, open-pit mining and other projects for the stripping and excavation of ore, etc.; in addition to gravel, coal and other loose materials can be loaded.
Operation: After replacing the working device, it can also be used for lifting, pouring, installation, piling, ramming and pile pulling.
Our Service:
We support OEM/ODM service, and we have a professional development research department, designs, colors, and also products all can be acceptably customized, we have 3 times to supervise quality control through the production line before sending out. And quality and service is the first principle of the company. We keep 12 months warranty, beyond the warranty period, and all spare parts are offered to you at our cost price (not including freight). By the way, we support 24Hour customer service by email or phone. Please feel free to contact us, we are willing to become your friend and business partner.
