Place of Origin:
Shandong, China
Brand Name:
Fullwin
Certification:
CE/ISO9001: 2000/EPA/Euro 5/SGS
Model Number:
FW15
Contact Us

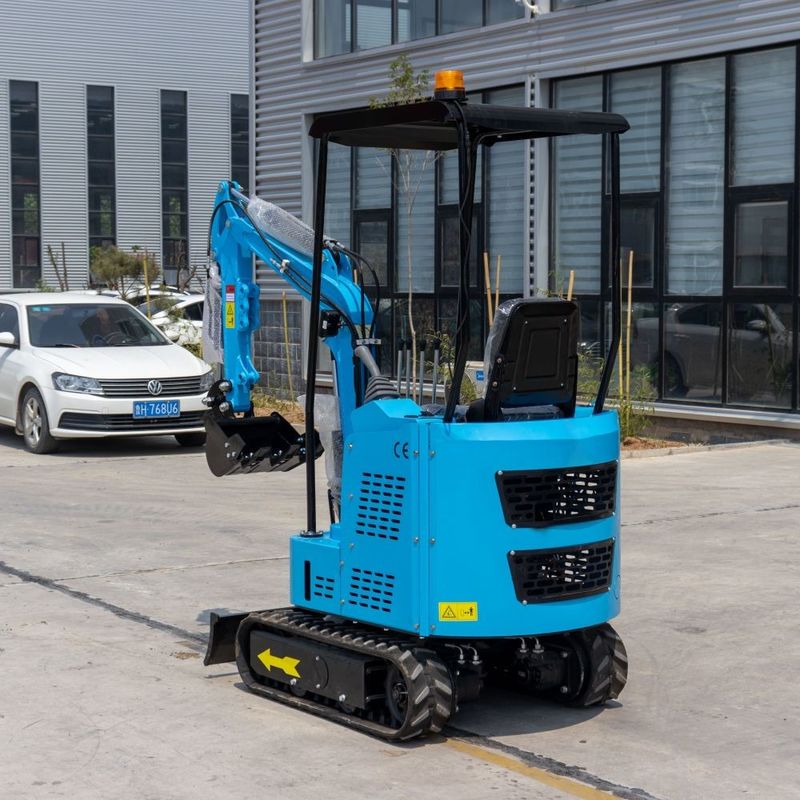

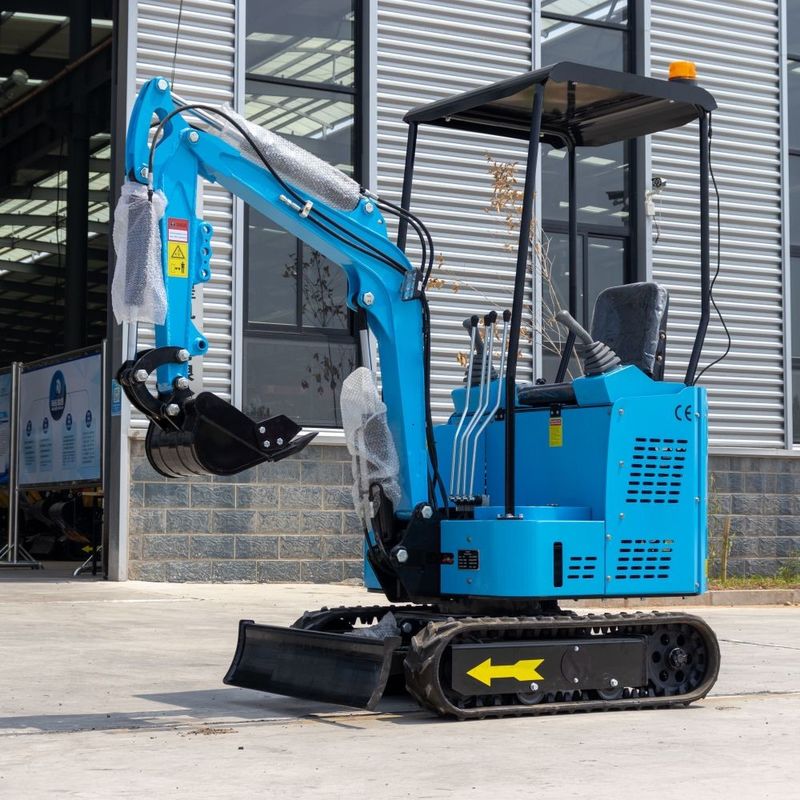

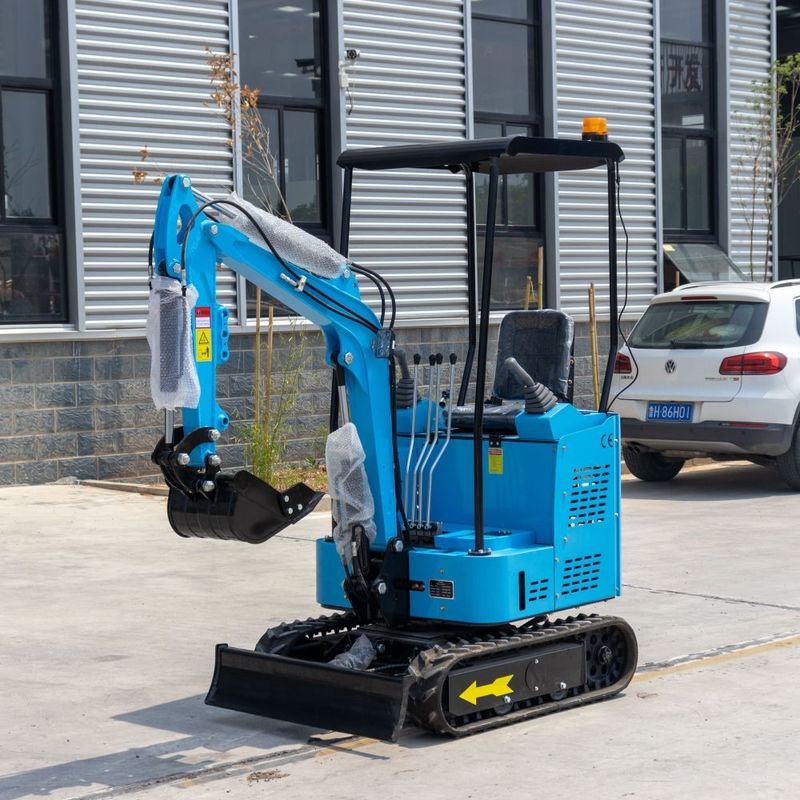

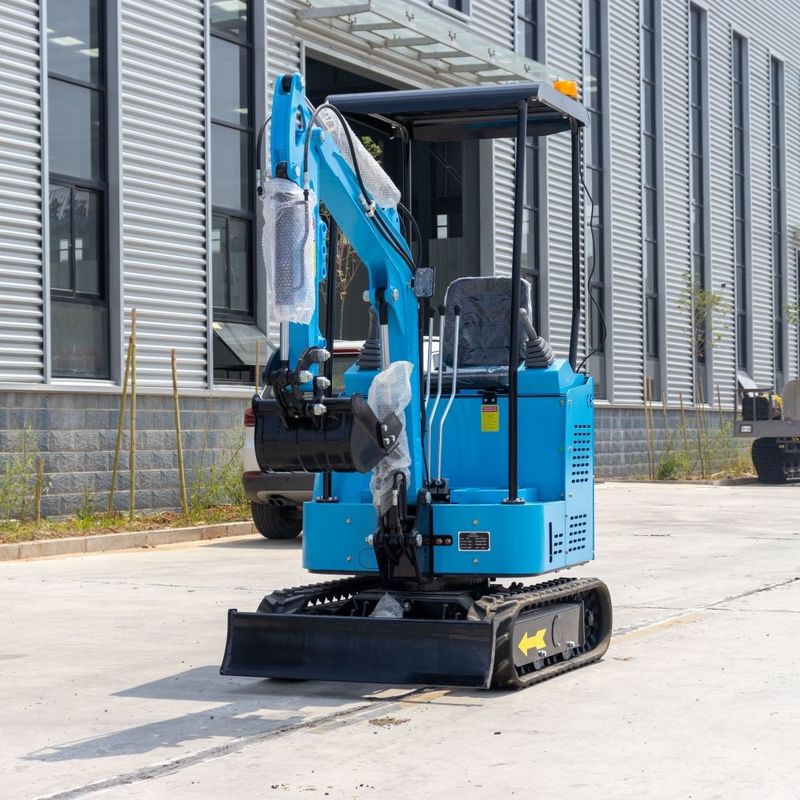

Micro Mini Excavator 1.5 Ton Blue Digging Machine meet Euro V CE EPA standard
Features
1. With pilot operation on both sides, which is more comfortable to work.
2. KOOP, Briggs&Stratton, Kubota engine for your select.
3. All meet CE, Euro 5, EPA certification.
4. Optional configuration: swing boom, retractable chassis, closed cabin
5. Support ODM &OEM.
Description
Our 1.5 ton mini excavator is widely used in farm, garden, small projection, etc cituations.
It is bigger than 1.3 ton mini excavator, but little than 1.8 ton mini excavator.
Whether you choose mechanical pilot or hydraulic pilot, the control handles are all in both sides, which add the confortablity of the operation.
For the aftersales service, the warranty period of our 1.5 ton mini excavator is 2 years.
Under normal use and maintenance, our excavator will not have any problems within 2 years.
And we can offer you the free spare part if the machine have problem itself during the warranty time, and also we can offer the technology support and operation manual.
More parameters
| Model | FW15 |
| Engine | KOOP/Briggs&Stratton/Kubota |
| Bucket width | 380mm |
| Rated power | 14kw |
| Operating weight | 1500kg |
| Displacement | 0.794L |
| Size | 2550*940*1380mm |
| Wheelbase | 770mm |
| Total length of track | 1090mm |
| Platform ground clearance | 380mm |
| Platform back turning radius | 733mm |
| Chassis Width | 940mm |
| Track width | 180mm |
| Chassis ground clearance | 380mm |
| Track height | 320mm |
| Max.digging depth | 1650mm |
| Max.vertical digging depth | 1375mm |
| Max.digging height | 2610mm |
| Max.dumping height | 1850mm |
| Max.digging radius on ground | 2850mm |
| Min.rotation radius | 1330mm |
| Max.upgrade height of bulldozer blade | 345mm |
| Max.digging depth of bulldozer blade | 255mm |
FAQ
1. Are you a manufacturer?
Yes, we are a factory with more than 10 years of manufacturing experience.
2. Whats' your MOQ?
Our MOQ is one unit.
3. What are your terms of payment?
T/T 30% as deposit, and 70% before delivery.
We'll show you the photos of the products and packages before paying the balance.
4. What are your terms of delivery?
EXW, FOB, CFR, CIF.
5. How about your delivery time?
Generally, it will take 7-10 working days after receiving your advance payment.
The specific delivery time depends on the items and the quantity of your order.
