Place of Origin:
Shandong Province, China
Brand Name:
FULLWIN
Certification:
CE; EPA; Euro V
Model Number:
FW40J
Contact Us
Features:
1. 18.5KW/25HP Kubota D1703 diesel powered, EPA&EURO5 certified
2. Totally zero-tail swing
3. Smooth hydraulic pilot controls

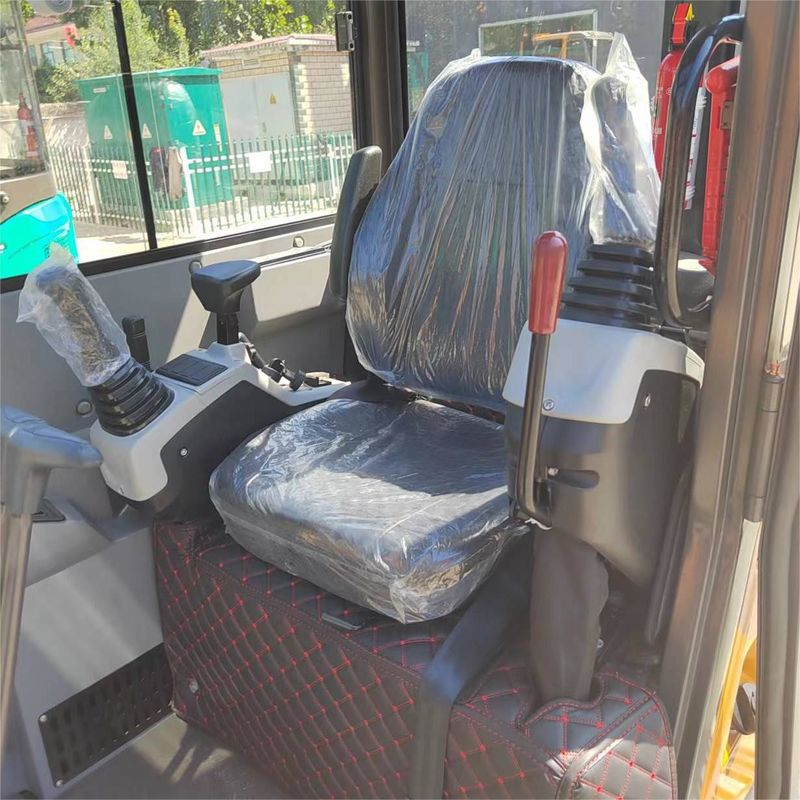

4. Fully enclosed cabin with A/C, heater, LCD display and radio
5. 300mm wide steel tracks
6. Swing boom
7. 2-speed travel, 4.4/2.4km/h
8. Visible mirrors
9. Working lights and warning light
10. Rear door for easy maintenance
Descriptions:
1. Engine compartment well put together, easy to inspect and maintain
2. Imported hydraulic system parts, ensure smooth performance
3. Extra hydraulic connection for various attachments.
4. Spacious cabin, make you feel at home
5. Pilot control joysticks imported from Korea, are easy to operate
Parameters:
| Model | FW40J |
| Engine | |
| Engine Make/Model | KUBOTA D1703 |
| No. of Cylinders | 3 |
| Rated Power | 18.5KW/25HP |
| Emission Standard | EPA/Euro5 |
| Performance | |
| 2-Speed Travel | 4.4/2.4km/h |
| Gradeability | 30° |
| Machine Weight | 3810KG |
| Operating Weight | 4000KG |
| Dimensions | |
| Length | 4915mm |
| Width | 1720mm |
| Height with Cabin | 2524mm |
| Operation Range | |
| Max. Digging Radius | 5480mm |
| Max. Digging Depth | 3208mm |
| Max. Digging Height | 4800mm |
| Max. Dumping Height | 3406mm |
FAQ:
1. What's your MOQ?
Usually, we don't limit a MOQ for testing, just decide the QTY by yourself.
2. How about your delivery time?
Usually, we have some stock for trial or small orders, so just deliver within 7 days, while 15–25 days for
large orders and customized products.
3. How about payment?
100% T/T in advance before shipment.
4. Do you provide samples? Is it free or extra?
Yes, we could offer the sample, but it's not free.
5. Could you make it according to our special requirements?
Of course, please tell us your ideas.
Pictures:
