Place of Origin:
Shandong, China
Brand Name:
FULLWIN
Certification:
EPA/EURO5
Model Number:
FW18J
Contact Us

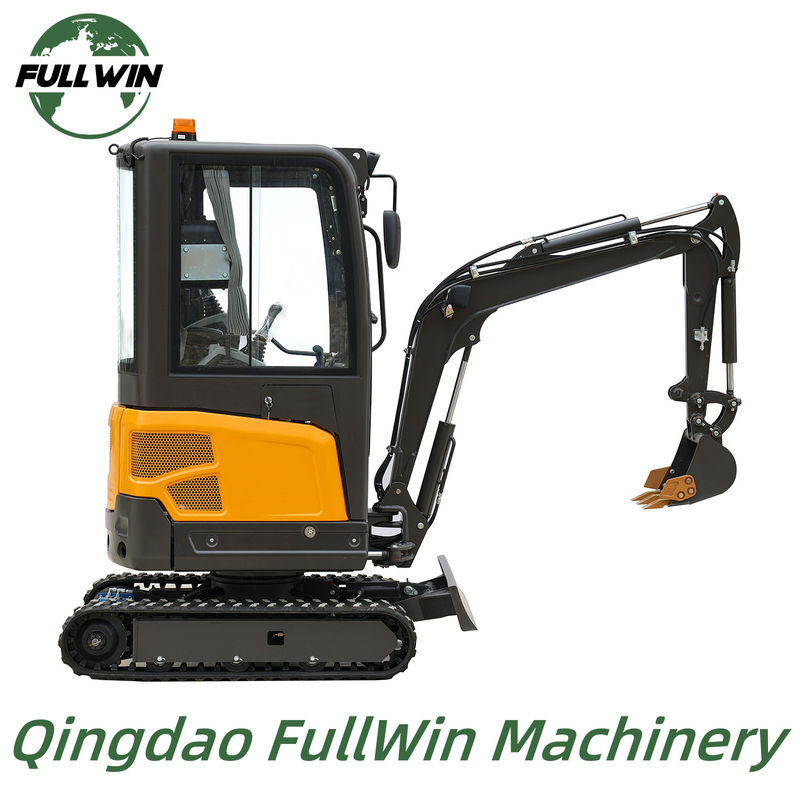

1.8 T Excavator 3969LBS Diesel Powered 1800KG Hydraulic Mini Excavator
Features:
1. 1.8T/3969LBS operating weight
2. Kubota D722, diesel-powered makes it a powerful machine
3. Smooth hydraulic pilot operation
Description:
1. Rear door for easy maintenance
2. Free swing boom, left 75°/ right 45°
3. Extendable tracks,1050-1350mm
4. Comfortable operating experiences
5. Smooth and simple operation
Specifications:
| Performance | |
| Diesel Engine | KUBOTA D722 |
| No. of Cylinders | 3 |
| Rated Power | 10.2KW/2500RPM |
| Emission Standard | EPA/EURO5 |
| System Pressure | 20MPa |
| Standard Bucket Capacity | 0.025CBM |
| Standard Bucket Width (with teeth) | 400mm |
| Swing Speed | 11-13RPM |
| Gradeability | 30° |
| Max. Bucket Digging Force | 9KN |
| Max. Stick Digging Force | 5.5KN |
| Operation Range | |
| Max. Digging Height | 2955mm |
| Max. Dumping Height | 2077mm |
| Max. Digging Depth | 2017mm |
| Max. Vertical Digging Depth | 1610mm |
| Max. Digging Radius | 3529mm |
| Max. Lifting Height of Bulldozer Blade | 236mm |
| Max. Cutting Depth of Bulldozer Blade | 229mm |
| Dimensions | |
| Length | 3329mm |
| Width | 1100mm |
| Height with Cabin | 2267mm |
| Axis Distance | 1190mm |
| Gauge | 790mm |
| Min. Ground Clearance | 153mm |
FAQ:
1. What's your MOQ?
Usually, we don't limit a MOQ for testing, just decide the QTY by yourself.
2. How about your delivery time?
Usually, we have some stock for trial or small orders, so just deliver within 7 days, while 15–25 days for
large orders and customized products.
3. How about payment?
100% T/T in advance before shipment.
4. Do you provide samples? Is it free or extra?
Yes, we could offer the sample, but it's not free.
5. Could you make it according to our special requirements?
Of course, please tell us your ideas.
Pictures:
