Place of Origin:
Shandong, China
Brand Name:
Fullwin
Certification:
CE/ISO9001: 2000/EPA/Euro 5/SGS
Model Number:
FW15
Contact Us

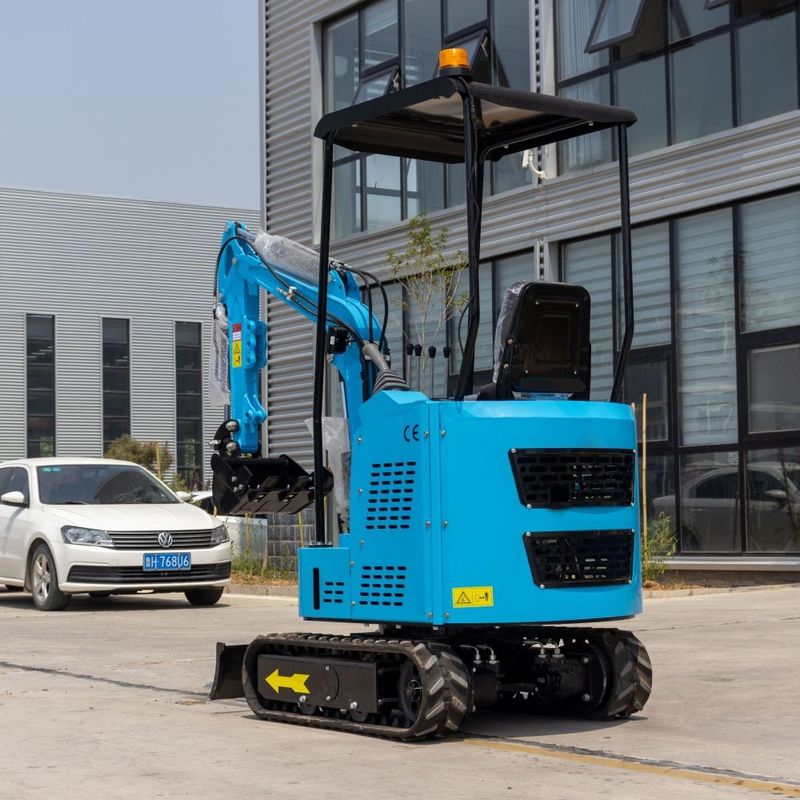

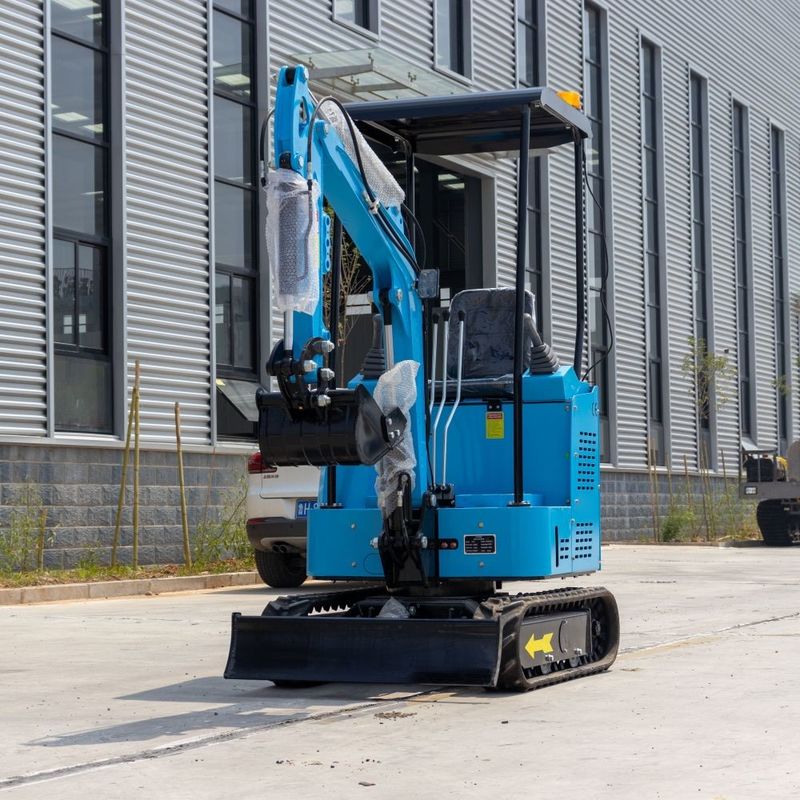

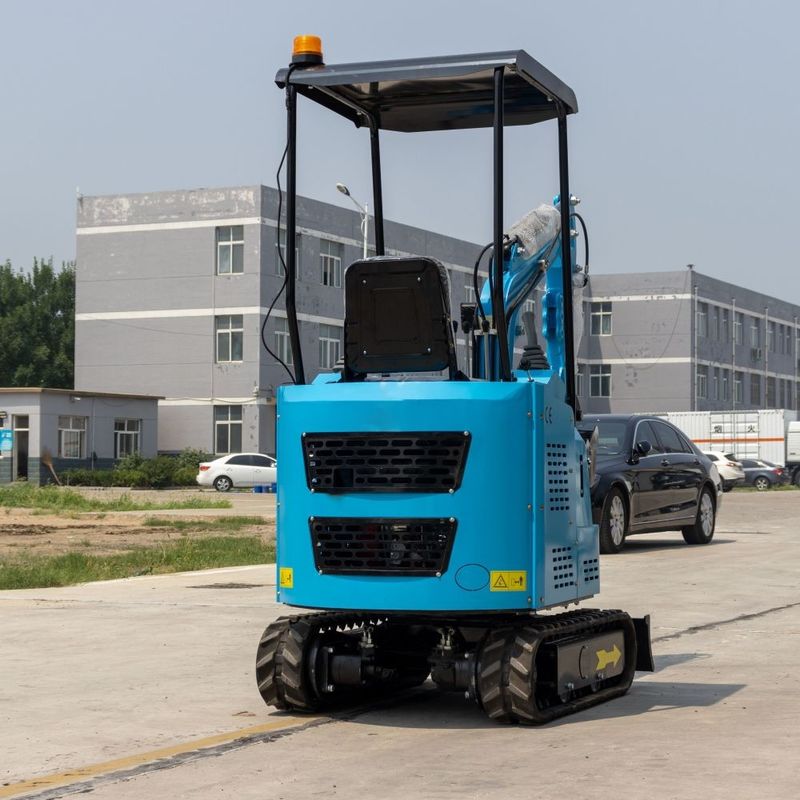

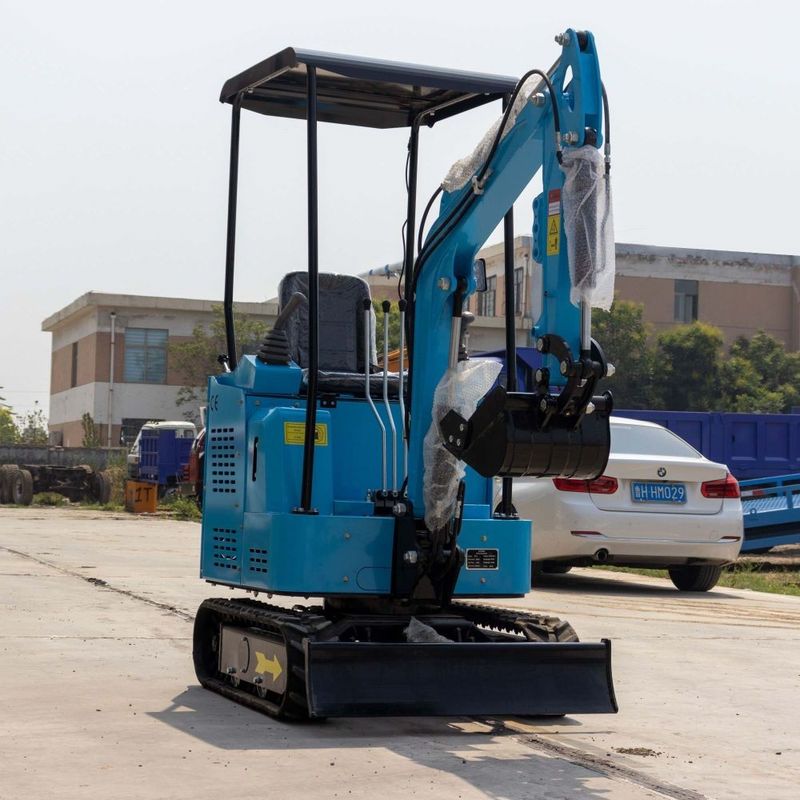

1.5 Tonne Excavator easy control agricultural equipment with pilot operation
Features
1. Offer mechanical and hydraulic pilot operation on both sides.
2. Seat with adjustable double armrests.
3. Equipped with imported cylinders, tubing with build-in-NOK sealing ring.
4. Support ODM & OEM
5. Suitable to garden, farm, agricultural, small construction, etc.
Description
FW15 - 1.5ton mini excavator equipped with KOOP, Briggs&Stratton, Kubota engine for your select.
Both of the mechanical control and hydraulic control on both sides, it's more comfortable to operation.
It's bigger than 1 ton and smaller than 1.8ton mini excavator, it's totally powerful to your farm use.
For the configuration, there are swing boom, retractable chassis, closed cab for your select.
And we also procide customized service, such as color, logo, etc.
For the accessories, there are quick hitch, thumb clip, breaker, auger drive unit with auger, rake, graple, plain buctet, sieve bucket, etc.
More parameters
| Model | FW15 |
| Engine | KOOP/Briggs&Stratton/Kubota |
| Bucket width | 380mm |
| Rated power | 14kw |
| Operating weight | 1500kg |
| Displacement | 0.794L |
| Size | 2550*940*1380mm |
| Wheelbase | 770mm |
| Total length of track | 1090mm |
| Platform ground clearance | 380mm |
| Platform back turning radius | 733mm |
| Chassis Width | 940mm |
| Track width | 180mm |
| Chassis ground clearance | 380mm |
| Track height | 320mm |
| Max.digging depth | 1650mm |
| Max.vertical digging depth | 1375mm |
| Max.digging height | 2610mm |
| Max.dumping height | 1850mm |
| Max.digging radius on ground | 2850mm |
| Min.rotation radius | 1330mm |
| Max.upgrade height of bulldozer blade | 345mm |
| Max.digging depth of bulldozer blade | 255mm |
FAQ
1. Are you a manufacturer?
Yes, we are a factory with more than 10 years of manufacturing experience.
2. Whats' your MOQ?
Our MOQ is one unit.
3. What are your terms of payment?
T/T 30% as deposit, and 70% before delivery.
We'll show you the photos of the products and packages before paying the balance.
4. How about your delivery time?
Generally, it will take 7-10 working days after receiving your advance payment.
The specific delivery time depends on the items and the quantity of your order.
5. How do you make our business a long-term and good relationship?
We keep good quality and competitive prices to ensure our customer's benefits;
We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
