Place of Origin:
Shandong,China
Brand Name:
FULLWIN
Certification:
EPA/Euro5
Model Number:
FW10F
Contact Us
Features:
1. 1000KG/2205LBS operating weight
2. Support both mechanical and hydraulic version, you can choose as you like
3. Only 3 feet wide, suitable for small farm / garden / greenhouse and other narrow workplaces
4. Totally zero - tail swing
5. Option: swing boom and telescopic chassis
Description:

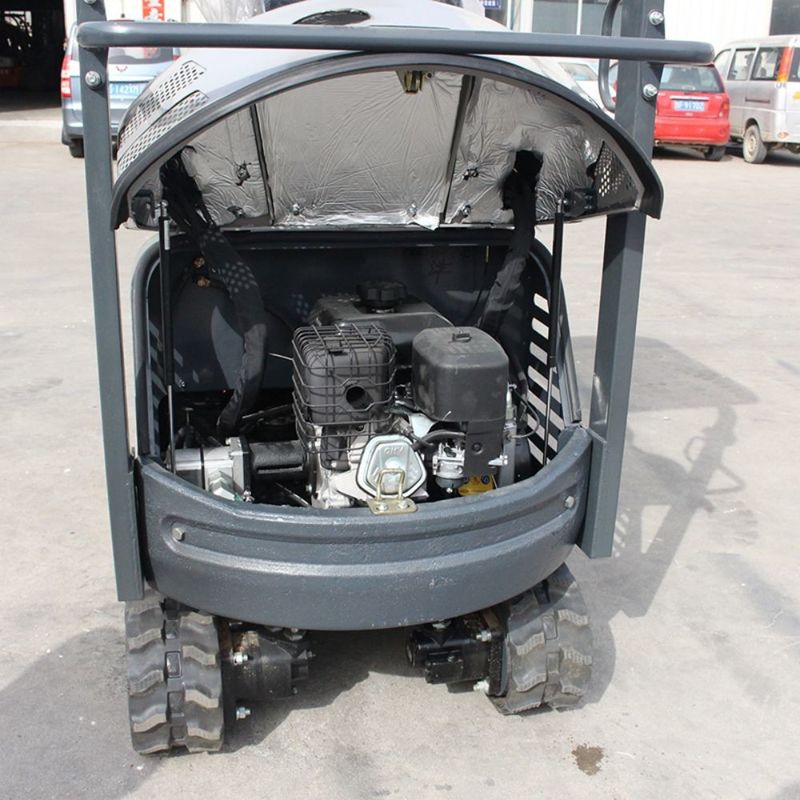

FW10F 1TON Mini Excavator focus on detail processing, hydraulic oil radiator, cooling fan, hose protection,
hydraulic shut-off valves, oil gauge, safety lock, and blade-like bucket side teeth, etc.
It's really a compact and durable 1 ton digger, different from other 1 ton models.
For peace of mind, we can provide 2-year extensive warranty.
For saving high maintenance costs, we will provide some wearing parts for free, with your goods together delivered to you.
For using flexible, only 3 feet wide, it can pass though narrow spaces, such as farm, greenhouse, garden, etc.
| MODEL | FW10F |
|
Diesel Engine |
KOOP, Euro5 Certified |
|
Gasoline Engine |
Briggs&Stratton, Euro5 Certified |
|
Rated Power |
7KW/3000RPM |
|
Machine Weight |
950KG |
|
Operating Weight |
1000KG |
|
Bucket Capacity |
0.025m³ |
|
Bucket Width |
400mm |
|
Travel Speed |
3km/h |
|
Operation Mode |
Mechanical/Hydraulic Operation |
|
Gradeability |
30° |
|
Fuel Tank Capacity |
10L |
|
Hydraulic Oil Tank Capacity |
16L |
|
Dimension (L*W*H) |
2200*930*2250mm |
|
Wheelbase |
910mm |
|
Max.Digging Depth |
1630mm |
|
Max.Vertical Digging Depth |
1370mm |
|
Max.Digging Height |
2750mm |
|
Max.Unloading Height |
1960mm |
|
Max.Digging Radius |
2900mm |
|
Max.Ground Level Digging Distance |
2100mm |
|
Min.Radius of Gyration |
1300mm |
|
Dozer Blade Max.Cutting Depth |
210mm |
|
Dozer Blade Max.Lifting Height |
180mm |
FAQ:
1. What's your MOQ?
Usually, we don't limit a MOQ for testing, just decide the QTY by yourself.
2. How about your delivery time?
Usually, we have some stock for trial or small orders, so just deliver within 7 days, while 15-25 days for large orders and
customized products.
3. How about payment?
100% T/T in advance before shipment.
4. Do you provide samples? Is it free or extra?
Yes, we could offer the sample, but it's not free.
5. Could you make it according to our special requirements?
Of course, please tell us your ideas.
