Place of Origin:
Shandong,China
Brand Name:
None
Certification:
CE/ISO9001:2000/SGS/Euro 5
Model Number:
FW08
Contact Us

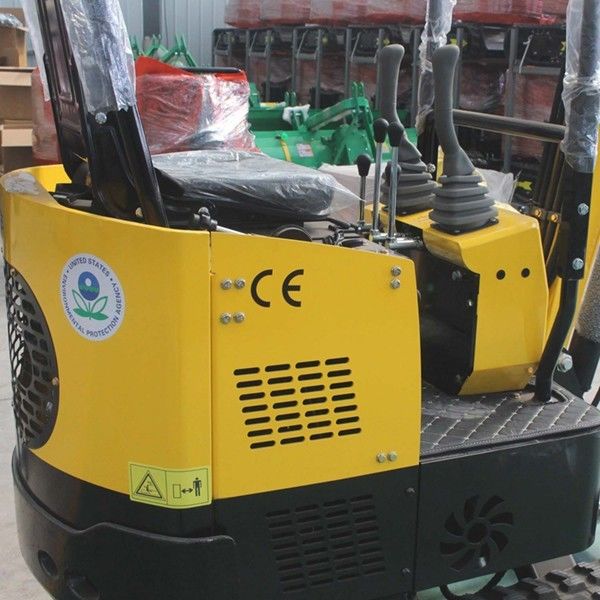

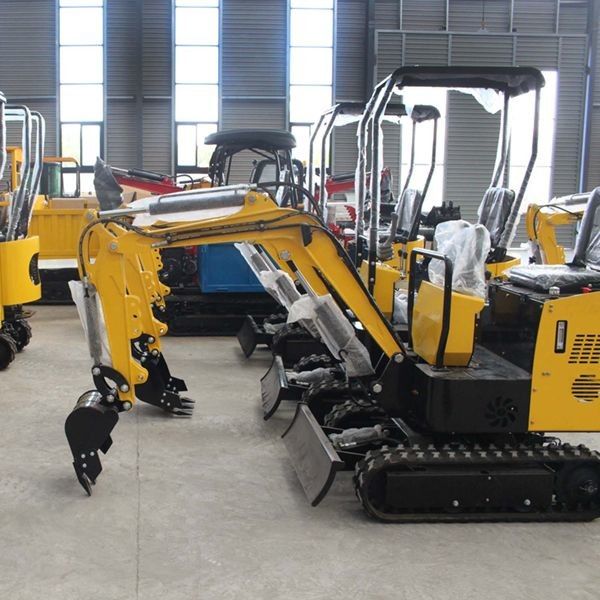

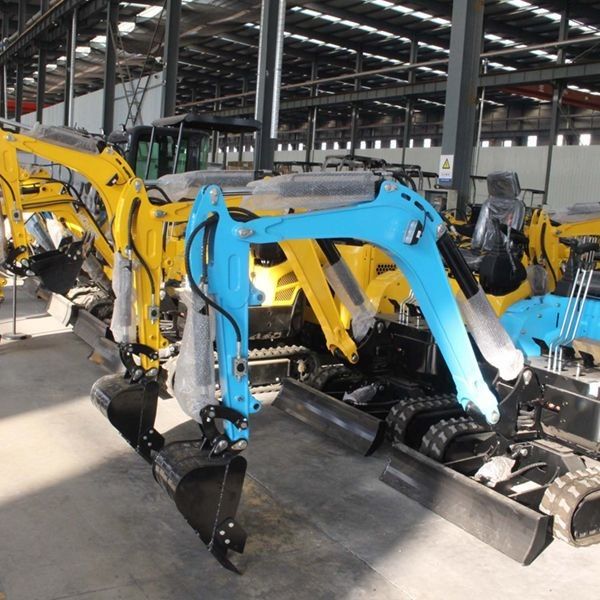

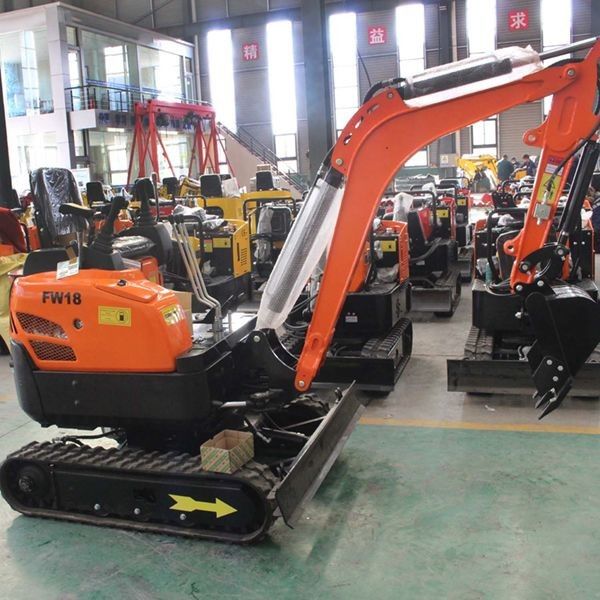

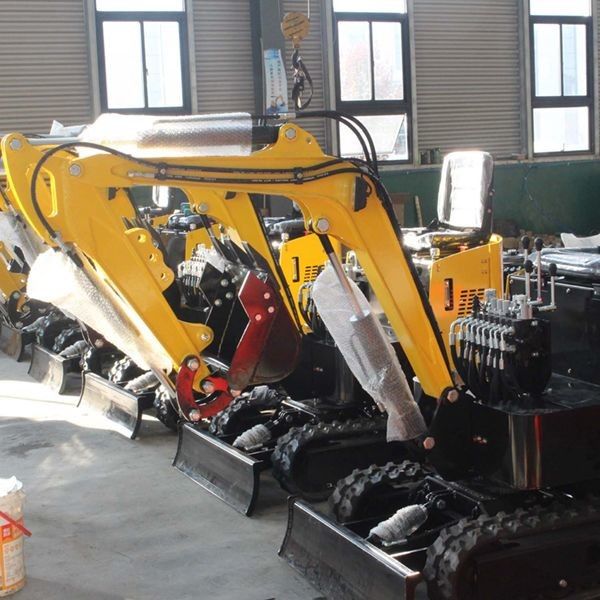

Mini Excavator Machine Hydraulic Small Micro Crawler Bagger Digger With Ce Epa

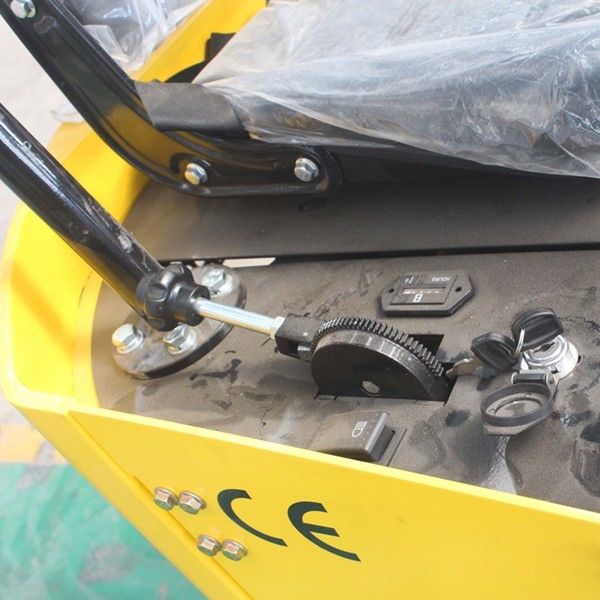

The cab on our excavator is designed for operator comfort and convenience, with features such as a spacious interior, climate control, and an intuitive control panel. The comfort of the operator is a key consideration, as it helps to maximize productivity and reduce fatigue. The cab also positions the operator for optimum visibility and safety.
Our excavator offers best-in-class safety features, providing peace of mind to operators and job site managers. The machine is designed with reinforced structures that allow it to handle even the most challenging excavation tasks. Built-in safety features include collision protection and obstacle detection sensors, ensuring that job site workers and the public remain safe at all times.
Finally, our excavator is designed for easy maintenance and repair. The clear layout, innovative design, and easy access to engines and components reduce downtime and keep the machine performing at peak efficiency levels. With minimal interruptions to work schedules, our customers can maximize uptime and efficiency.
| Preformance Parameter FW08A | |
| Rated Power | 7kw-7.5kw |
| Bucket Capacity | 0.025m³ |
| Bucket Width | 300mm |
| Engine Model | Koop192f |
| Optional Engine | Briggs&Stratton |
| Opeating Weight | 800kg |
| Pump Form | Single Gear Pump |
| Set Working Pressure | 14Mpa |
| Swing Speed | 12rpm |
| Travel Speed | 2.2Km/h |
| Gradeability | 30° |
| Ground Pressure | 19Kpa |
| Max. Digging Force | 7.5Kn |
| Dimensions | |
| Total Width | 720-780mm |
| Total Height | 1300mm |
| Total Length | 2430mm |
| Min.Ground Clearance | 80mm |
| Track Ground Length | 1140mm |
| Track Width | 150mm |
| Working Range | |
| Max.Digging Distance | 2450mm |
| Max.Digging Depth | 1200mm |
| Max.Digging Height | 2350mm |
| Max.Dumping Height | 1600mm |
| Min. Swing Radius | 1100mm |
| Max. upgrade Height of Bulldozer Blade | 120mm |
| Max.Digging Depth of Bulldozer Blade | 200mm |
