Place of Origin:
Shandong,China
Brand Name:
None
Certification:
CE/ISO9001:2000/SGS/Euro 5
Model Number:
FW08
Contact Us

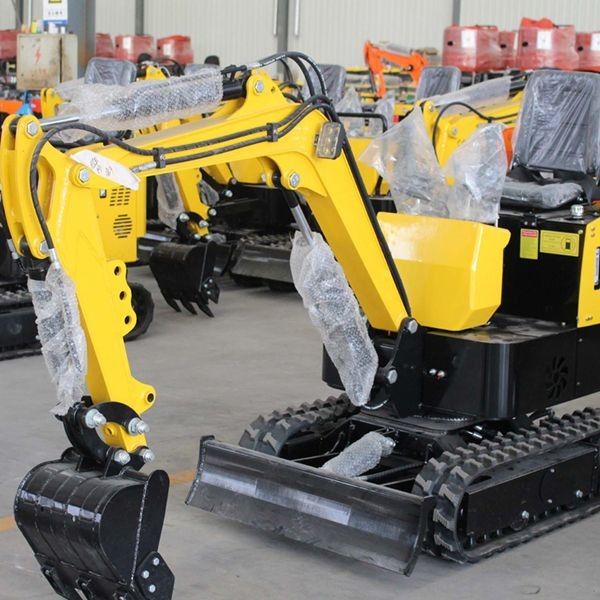

New Chinese 0.8T Mini Excavator 1ton Hydraulic Crawler Excavator
The engine that powers our excavator is highly efficient and delivers impressive power. This means that operators can handle tough jobs without sacrificing fuel efficiency or machine performance. Additionally, the engine is built to last, ensuring that the excavator is able to provide reliable performance for many years to come.
Our excavator has been designed with operator comfort in mind. The spacious cab is comfortable and designed to reduce operator fatigue, even during long hours of operation. The cab also features advanced features such as climate control, a range of adjustable controls, and an intuitive control panel.
| Preformance Parameter FW08A | |
| Rated Power | 7kw-7.5kw |
| Bucket Capacity | 0.025m³ |
| Bucket Width | 300mm |
| Engine Model | Koop192f |
| Optional Engine | Briggs&Stratton |
| Opeating Weight | 800kg |
| Pump Form | Single Gear Pump |
| Set Working Pressure | 14Mpa |
| Swing Speed | 12rpm |
| Travel Speed | 2.2Km/h |
| Gradeability | 30° |
| Ground Pressure | 19Kpa |
| Max. Digging Force | 7.5Kn |
| Dimensions | |
| Total Width | 720-780mm |
| Total Height | 1300mm |
| Total Length | 2430mm |
| Min.Ground Clearance | 80mm |
| Track Ground Length | 1140mm |
| Track Width | 150mm |
| Working Range | |
| Max.Digging Distance | 2450mm |
| Max.Digging Depth | 1200mm |
| Max.Digging Height | 2350mm |
| Max.Dumping Height | 1600mm |
| Min. Swing Radius | 1100mm |
| Max. upgrade Height of Bulldozer Blade | 120mm |
| Max.Digging Depth of Bulldozer Blade | 200mm |
