Place of Origin:
Shandong,China
Brand Name:
None
Certification:
CE/ISO9001:2000/SGS/Euro 5
Model Number:
FW08
Contact Us

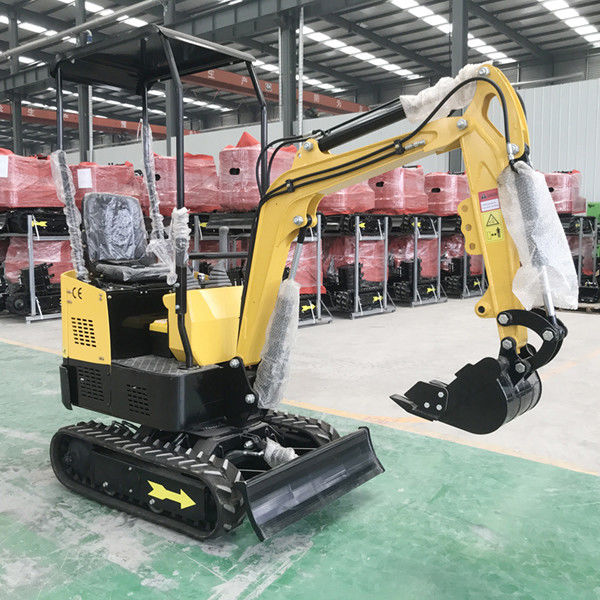

FREE SHIPPING Mini Small Digger CE/EPA/EURO 5 Compact Mini Excavators
Our excavator is designed to tackle the toughest construction, excavation, and earthmoving tasks with ease. With its advanced features and superior performance, this machine provides operators with everything needed to maximize productivity and efficiency.
One of the key features of our excavator is its powerful hydraulic system. This robust system provides exceptional digging force and speed, giving operators the ability to move large amounts of material quickly and efficiently. Furthermore, the state-of-the-art hydraulic system provides precise control for smooth, efficient operation.
The excavator is powered by a highly efficient engine, which delivers impressive power while maximizing fuel efficiency. The engine is also designed to last, ensuring that the machine will deliver reliable performance for years to come.
Another standout feature of our excavator is its cab. Designed with operator comfort in mind, the cab is spacious and comfortable, maximizing productivity and reducing operator fatigue. The cab also comes with a range of advanced features, including climate control, adjustable seats, and an intuitive control panel.
| Preformance Parameter FW08A | |
| Rated Power | 7kw-7.5kw |
| Bucket Capacity | 0.025m³ |
| Bucket Width | 300mm |
| Engine Model | Koop192f |
| Optional Engine | Briggs&Stratton |
| Opeating Weight | 800kg |
| Pump Form | Single Gear Pump |
| Set Working Pressure | 14Mpa |
| Swing Speed | 12rpm |
| Travel Speed | 2.2Km/h |
| Gradeability | 30° |
| Ground Pressure | 19Kpa |
| Max. Digging Force | 7.5Kn |
| Dimensions | |
| Total Width | 720-780mm |
| Total Height | 1300mm |
| Total Length | 2430mm |
| Min.Ground Clearance | 80mm |
| Track Ground Length | 1140mm |
| Track Width | 150mm |
| Working Range | |
| Max.Digging Distance | 2450mm |
| Max.Digging Depth | 1200mm |
| Max.Digging Height | 2350mm |
| Max.Dumping Height | 1600mm |
| Min. Swing Radius | 1100mm |
| Max. upgrade Height of Bulldozer Blade | 120mm |
| Max.Digging Depth of Bulldozer Blade | 200mm |
