Place of Origin:
Shandong, China
Brand Name:
FULLWIN
Certification:
CE/ISO9001: 2000/EPA/Euro 5/SGS
Model Number:
FW10H
Contact Us

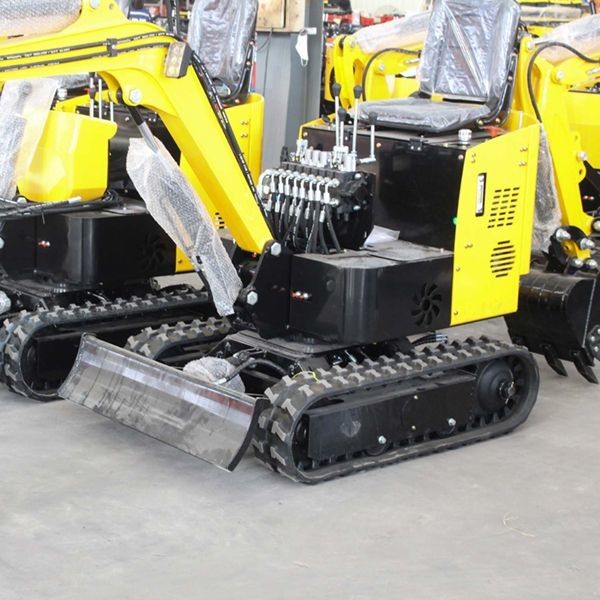

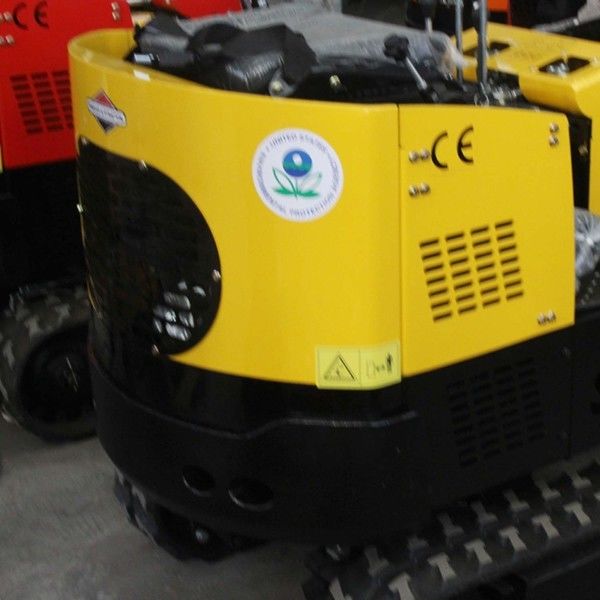

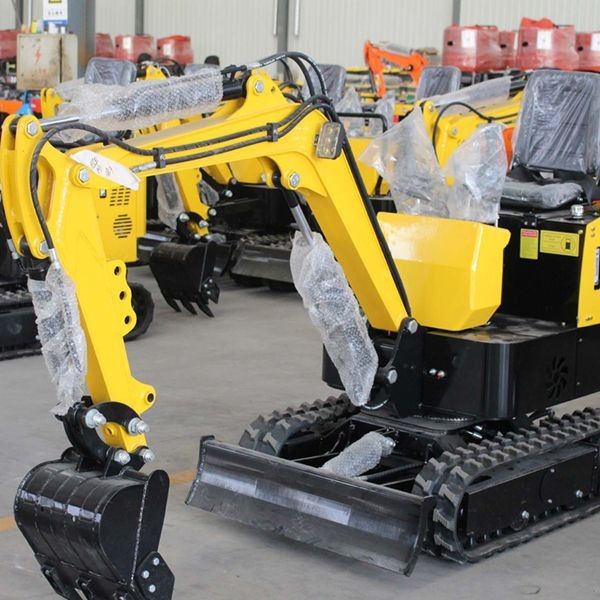

Kubota Engine Small Digger CE/EPA/EURO5 Compact Mini Excavators
Looking for a high-quality, reliable excavator to handle your next big project? Look no further than our selection of excavators, designed to make even the toughest jobs seem easy. With advanced technologies and innovative designs, our excavators are built to handle any job site with ease and precision.
Our excavators come equipped with a range of features, including powerful engines, advanced hydraulic systems for accurate and efficient digging, and easy-to-use controls for maximum operator comfort and convenience. Whether you need to dig deep trenches, clear debris, build a foundation, or tackle a major demolition project, our excavators are up to the task.
| FW12 | |
| Weight | 1000kg |
| Digging Bucket Capacity | 0.025cbm/120kg |
| Bucket Width | 380mm |
| Engine | Kubota D722 |
| Bore Stroke | 三缸水冷 |
| Rated Power | 10.2KW/2500r/min |
| Main Pump | 日本KDW5-6 |
| Valve | 意大利 |
| Displacement | 6.8ml/r |
| Swing Motor | China Brand |
| Traveling Motor | China Brand USA EATON (Optional) |
| Travel Speed | 1.5km/h |
| Size | 2775×930× 2219 mm |
| Wheelbase | 830-1000mm |
| Total Length Of Track | 1230mm |
| Platform Ground Clearance | 380 mm |
| Platform Back-Turning Radius | 784 mm |
| Chassis Width | 896 mm |
| Track Width | 180 mm |
| Chassis Ground Clearance | 132 mm |
| Track Height | 320 mm |
| Max. Digging depth | 1650 mm |
| Max. vertical digging depth | 1375 mm |
| Max. digging height | 2610 mm |
| Max. dumping height | 1850 mm |
| Max. digging radius on ground | 2850 mm |
| Min. rotation radius | 1330 mm |
| Max. Upgrade the height of the bulldozer blade | 345 mm |
| Max. Digging depth of bulldozer blade | 255 mm |
At Qingdao Fullwin Machinery, we are committed to providing our customers with the best possible experience. That’s why we offer a range of excavator models to choose from, each with its own unique features and capabilities to meet your specific needs. Whether you’re a contractor, builder, or homeowner, we’ve got the perfect excavator for your next project.
So why wait? Contact us today to learn more about our excavator models, and discover how our advanced technology and expert engineering can help you tackle any job with confidence.
