Place of Origin:
Shandong, China
Brand Name:
strong for win
Certification:
CE/ISO9001: 2000/EPA/Euro 5/SGS
Model Number:
FW10
Contact Us

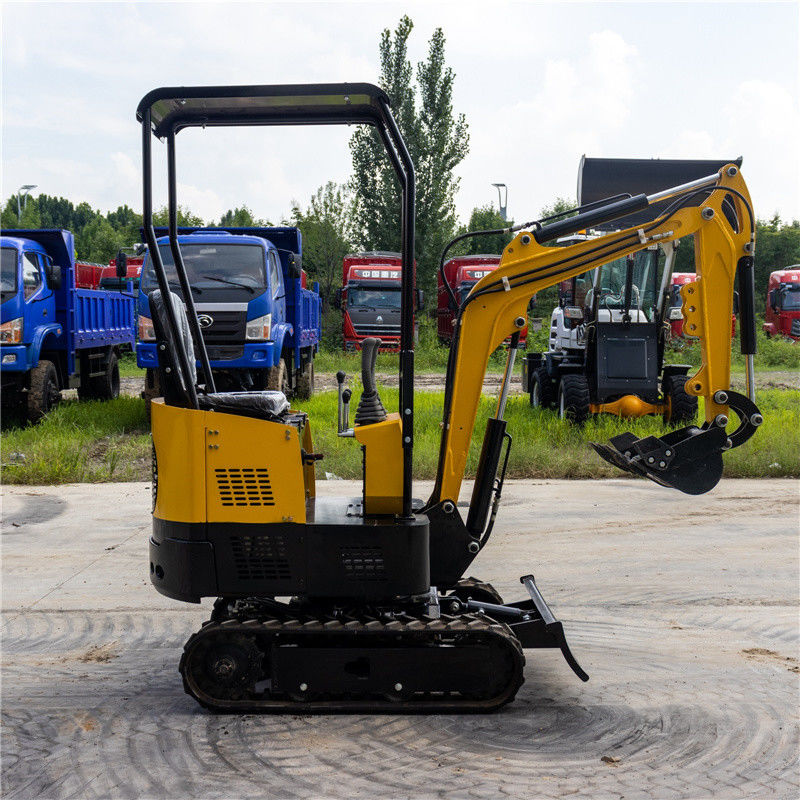

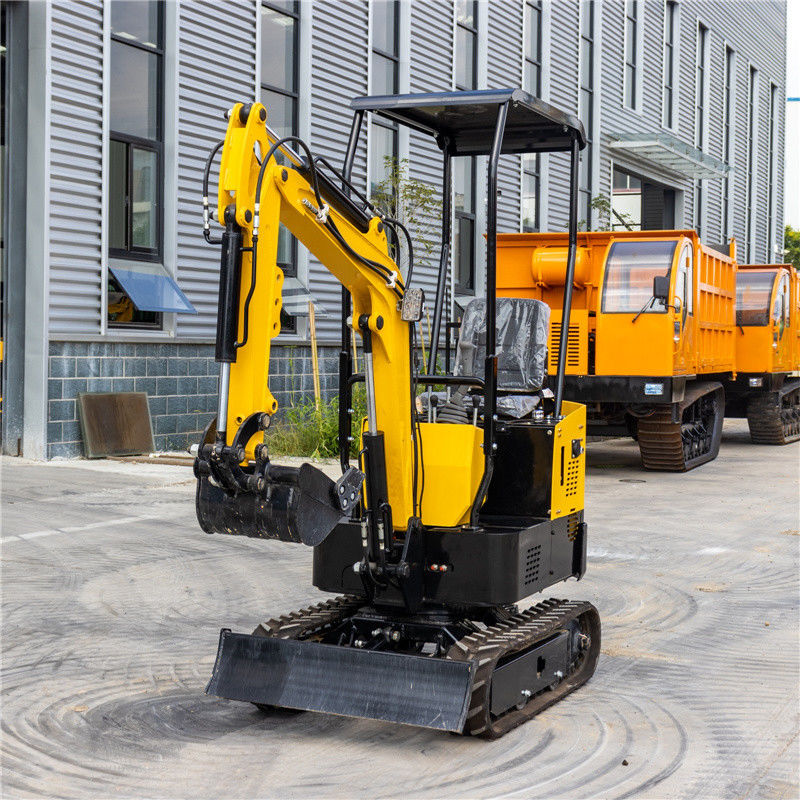

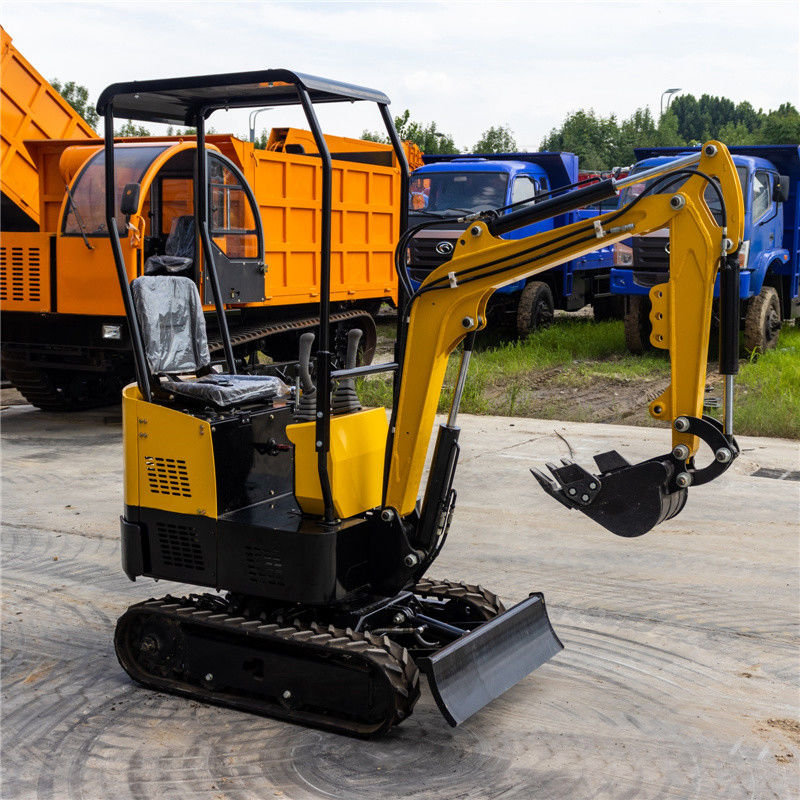

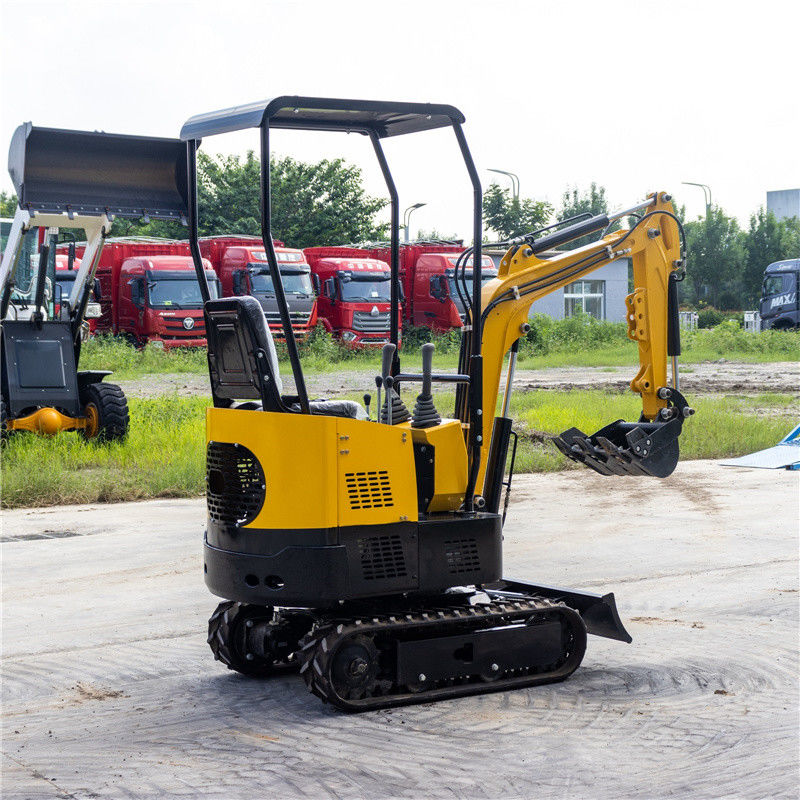

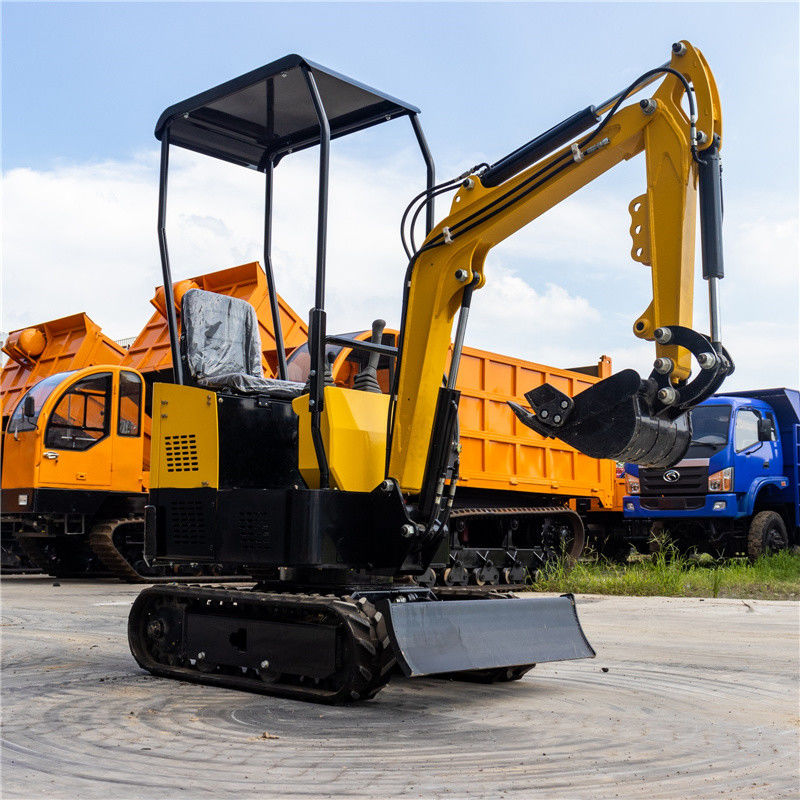

1ton Mini Garden Hydraulic Crawler Excavator With Retractable Chassis Price Color Customized
The small excavator has a unique advantage because of its low price, lightweight, convenient maintenance, and repair. Due to its compact size, flexibility, versatility, and high efficiency, it is very popular among users.
Wide applicability. The digging volume is small and flexible, which is very suitable for various pipeline excavations, foundation construction, public utilities, and house maintenance operations in towns and cities. The small size and special design make it possible to work in an environment where large excavators cannot be constructed.
Product Specifications:
| Wheelbase | 770mm |
| Track Grounding Length | 1090mm |
| Platform Ground clearance | 380mm |
| Chassis Width | 946mm |
| Track Width | 180mm |
| Transport Length | 2550mm |
| Full Vehicle Height | 1330mm |
| Maximum Ground Digging Radius | 2400mm |
| Maximum Digging Depth | 1650mm |
| Maximum Digging Height | 2490mm |
| Maximum Unloading Height | 1750mm |
| Minimum Radius of Gyration | 1190mm |
| Dozer Blade Maximum Lifting Height | 325mm |
| Dozer Blade Maximum Depth of Digging | 175mm |
Applications:
The main uses of the excavator: in road construction projects to excavate trenches, in construction projects to excavate the foundation, in water conservancy projects to excavate ditches, canals, and dredging rivers, in quarries, open-pit mining and other projects for the stripping and excavation of ore, etc.; in addition to gravel, coal and other loose materials can be loaded.
Operation: After replacing the working device, it can also be used for lifting, pouring, installation, piling, ramming, and pile pulling.
FAQ
Q:How can we ensure quality?
A:The final inspection is always carried out 3 times before shipment.
3.Payment
Q:What kind of payment terms can be accepted?
A: Normally we can worked on T/T.
4.Delivery time
Q:How about your delivery time?
A:Generally, it will take 7-10 working days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
5.Packing
Q:What are your terms of packing?
A: Generally, we use standard exported wooden cases for LCL goods and fixed well for FCL goods.
6. Warranty
Q: How to identify the quality about mini excavator for sale?
A: Our mini crawler excavator have a 12 months warranty after sale.
7.Long-term shipment
Q:How to make our business a long-term and good relationship?
A:1.We keep good quality and competitive price to ensure your benefits;
2.We respect every customer as our friend and we sincerely do business and make friends with you,no matter where you come from
