Wheel Small Skid Steer Mini Loader With Bucket

Wheel Small Skid Steer Mini Loader With Bucket

Bucket Skid Steer Mini Loader

0.5m3 Skid Steer Mini Loader

Place of Origin:

Shandong, China

Brand Name:

FULLWIN

Certification:

CE/ISO9001: 2000/EPA/Euro 5/SGS

Model Number:

FWHY45

Contact Us

Request A Quote
Product Details
Customized:
Support OEM And ODM
Transmission:
Hydraulic Transmission
Type:
Crawler Excavator
After-sales Service:
Spare Parts
Warranty:
12 Months
Drive Type:
Combustion And Electric Power
Bucket Capacity:
0.1-0.5m³
Transport Package:
Nude / Wooden Box
Color:
Blue, Yellow, Red, Orange, Green, White
Working Hour:
2000h
Payment & Shipping Terms
Minimum Order Quantity
1
Packaging Details
Nude / Wooden Box
Delivery Time
3-15 week days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
5000 Units/Year
Product Description

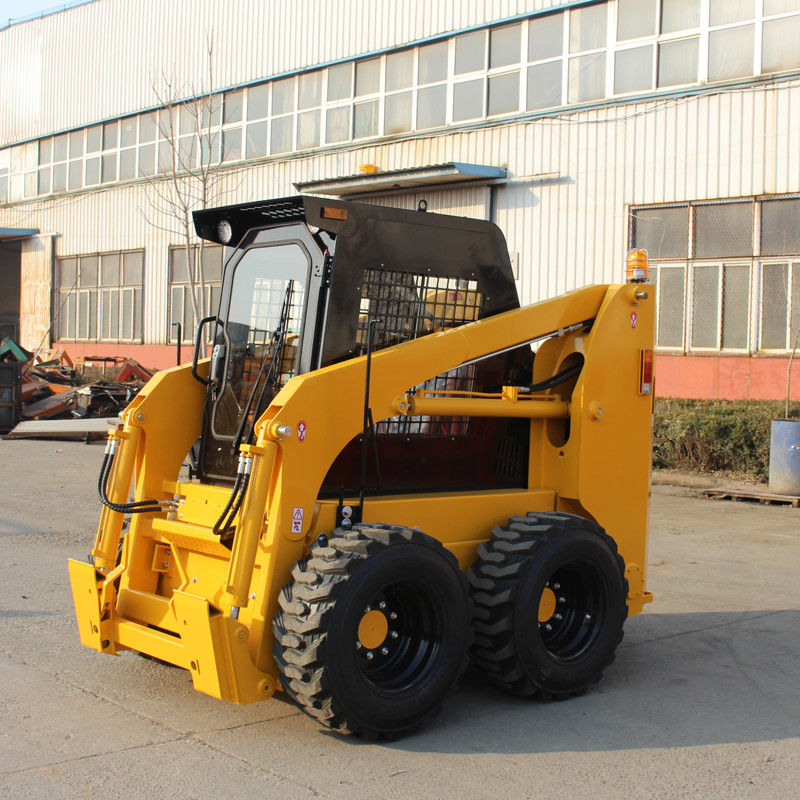

Mini Skid Steer Loader Wheel Small Skid Steer Mini Loader With Bucket



Mini loader skid steer loader can change different attachments at the job site, it can change just needs a few minutes, to adapt to the different working environments and job contents In this way, shoveling, stacking, lifting, digging, drilling, crushing, grasping, pushing, loosening soil, trenching, road cleaning can be respectively carried out. An auxiliary trailer can load all attachments to the job site, do whatever you want to do.

Wheel Small Skid Steer Mini Loader With Bucket 0



Specifications:

FWHY45
Engine Xinchai
Net power 37KW/2500rpm
Max. travel speed 12km/h
Hydraulic pump flow 75L/min
Overall Dimension(L*w*h) 3420×1740×2140
Operating weight 2700kg
Bucket capacity 0.4m3
Tipping load 1400kg
Rated operating capacity 700kg
Dump angle 40°
Wheelbase 991mm
Track width 1450mm
Dumping height 2380mm
Maximum reach 700mm
Ground clearance 185mm
Width with bucket 1740mm
Height to bucket hinge pin 3080mm
Height at maximum extension 3980mm



Advantages:

With a large space for a radiation system, the heat radiation performance of the whole machine is increased by 15%, and the working environment temperature can reach 45°C.


Engine imported from Japan can perfectly match the complete machine system, providing high fuel efficiency and excellent power.
Multiple attachments allow you to process more jobs with just one machine.

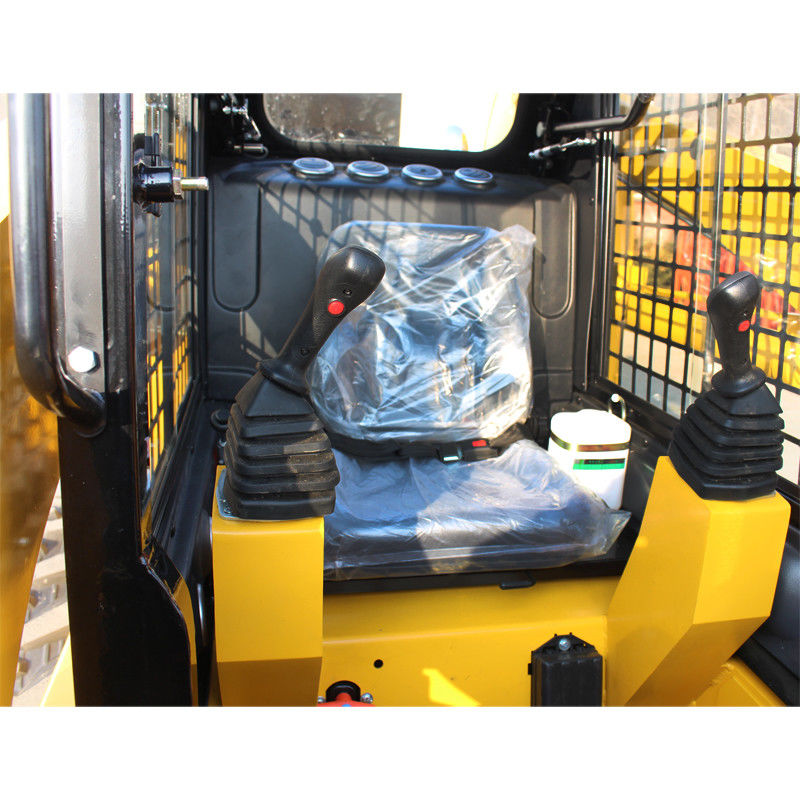

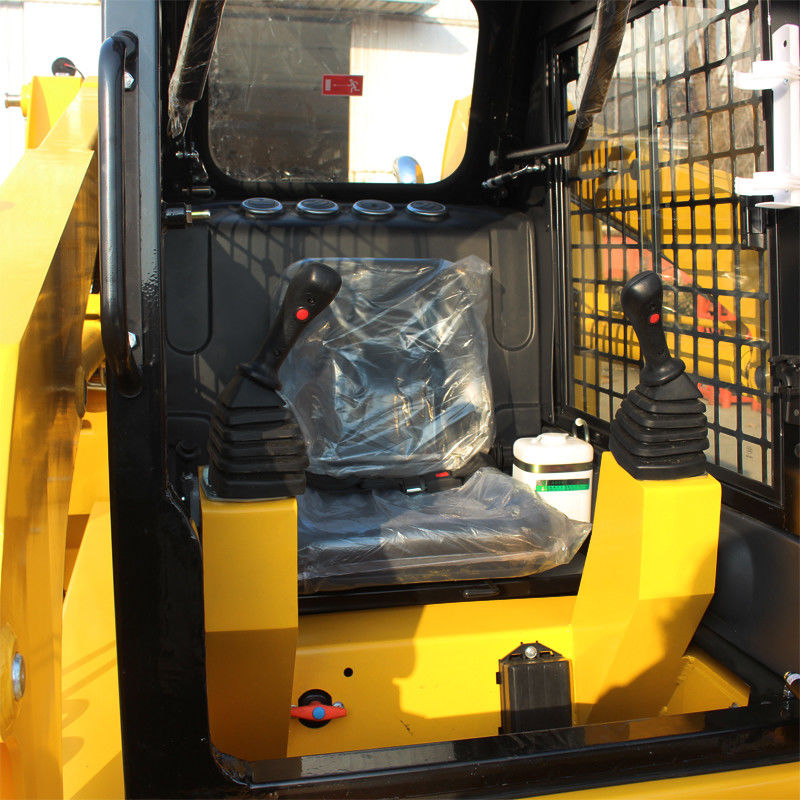

The 80-degree rear tilt cab and rear hook provide adequate maintenance space.

Wheel Small Skid Steer Mini Loader With Bucket 1



FAQ

1. Do you have an agent or distributor?
We are looking for a regional agent or distributor and hope to grow together with our partners.


2. What’s your marketing strategy?
High-quality products with competitive prices and make the value as much as possible for customers.


3. What’s your company's strength?
We rely on our enthusiastic and young powered team, we keep on making changes and innovations and want to make our machinery tools more helpful, interesting, and unique.


4. Do you have your own factory or just a trading company?
Yes, we have our own factory and we also make investments for our strategy cooperated factory, we know we can’t do everything but know what we should do!


5. How about warranty and after-sale service?
1 year or 1500 working hours which occurs first. If misoperation caused component damage or normal wear and tear we can provide spare parts but will be charged, the cost depends on specific components.
