Mini Skidsteer Skid Steer Loader with Multifunction Attachment

Mini Skidsteer Skid Steer Loader with Multifunction Attachment

EPA Skid Steer Loader

Multifunction Skid Steer Loader

Place of Origin:

Shandong, China

Brand Name:

FULLWIN

Certification:

CE/ISO9001: 2000/EPA/Euro 5/SGS

Model Number:

FWHY45

Contact Us

Request A Quote
Product Details
Customized:
Support OEM And ODM
Transmission:
Hydraulic Transmission
Type:
Crawler Excavator
After-sales Service:
Spare Parts
Warranty:
12 Months
Drive Type:
Combustion And Electric Power
Bucket Capacity:
0.1-0.5m³
Transport Package:
Nude / Wooden Box
Color:
Blue, Yellow, Red, Orange, Green, White
Working Hour:
2000h
Payment & Shipping Terms
Minimum Order Quantity
1
Packaging Details
Nude / Wooden Box
Delivery Time
3-15 week days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
5000 Units/Year
Product Description

Wheel Tracked Skid Steer Loader Mini Skid Steer Loaders With Bucket



Advantages and Highlights:
1. Strong and Efficient Power Transmission System
* The renowned brand engine equipped features strong power, ultra-low emission, and higher fuel efficiency.
* The static hydraulic drive technology adopted features a stable drive and high efficiency and reliability.
* The fully-sealed sprocket case and high-strength chains feature automatic lubrication and are maintenance-free.



2. Solid and Reliable Design
The integral frame adopted features a compact structure and high firmness and reliability. All critical structural parts are optimized through finite element analysis to realize reasonable stress distribution.



3. Flexible Operations
The bucket can automatically maintain level status during lifting to prevent the scattering of material and improve working efficiency.

4. Incomparable Multi-Functionalities


The international interchangeable quick-change coupling enables the change of tens of attachments, including sweeper, planer, breaking hammer, and ditcher, rapidly and conveniently.

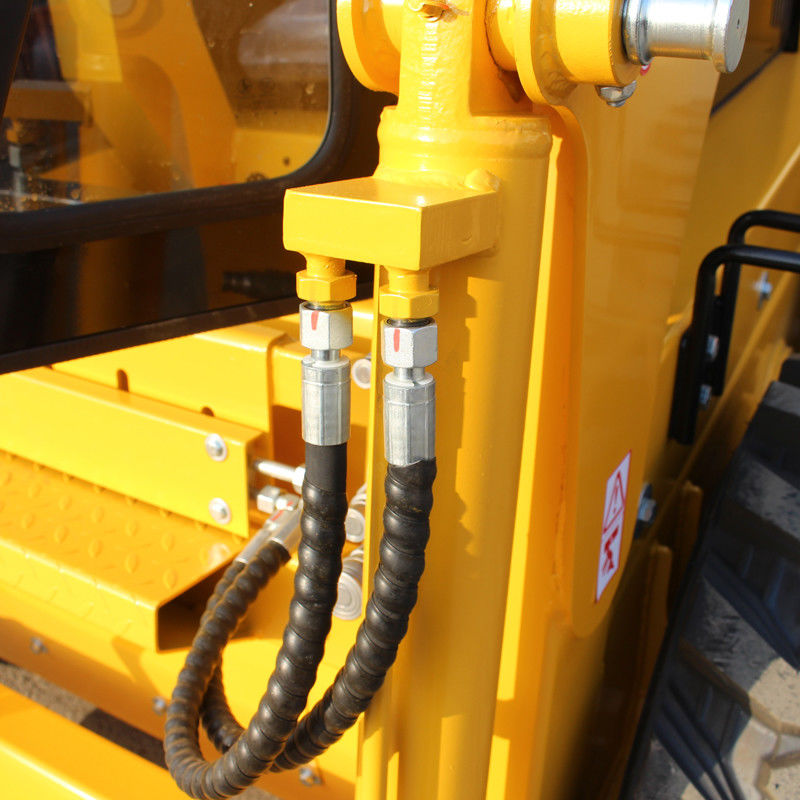

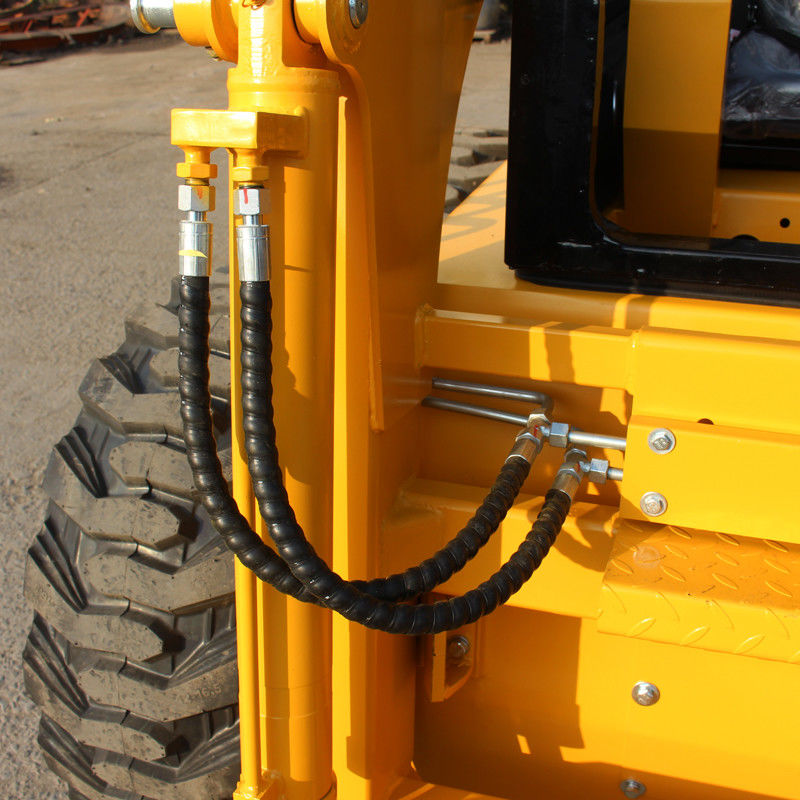

Mini Skidsteer Skid Steer Loader with Multifunction Attachment 0



Specifications:

FWHY40
Engine Xinchai
Net power 37KW/2500rpm
Max. travel speed 12km/h
Hydraulic pump flow 75L/min
Overall Dimension(L*w*h) 3420×1740×2140
Operating weight 2700kg
Bucket capacity 0.4m3
Tipping load 1400kg
Rated operating capacity 700kg
Dump angle 40°
Wheelbase 991mm
Track width 1450mm
Dumping height 2380mm
Maximum reach 700mm
Ground clearance 185mm
Width with bucket 1740mm
Height to bucket hinge pin 3080mm
Height at maximum extension 3980mm



Why choose our mini skid steer loader?
1. We are mini but more than mini!
2. We are not mini enough but just mini right!
3. You can have a seat in a cab with windows.
4. We are not a toy but real mini tools.
5. Use a commercial machinery engine, not a tools engine.
6. Your power mate, whenever you need it, it’s here!

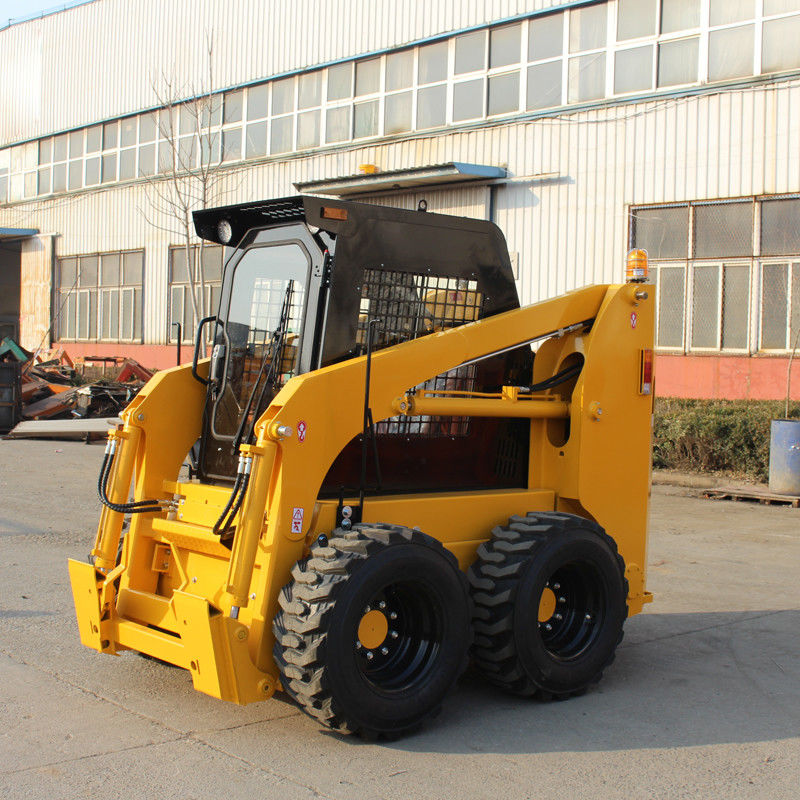

Mini Skidsteer Skid Steer Loader with Multifunction Attachment 1



FAQ

1. Do you have an agent or distributor?
We are looking for a regional agent or distributor and hope to grow together with our partners.


2. What’s your marketing strategy?
High-quality products with competitive prices and make the value as much as possible for customers.


3. What’s your company's strength?
We rely on our enthusiastic and young powered team, we keep on making changes and innovations and want to make our machinery tools more helpful, interesting, and unique.


4. Do you have your own factory or just a trading company?
Yes, we have our own factory and we also make investments for our strategy cooperated factory, we know we can’t do everything but know what we should do!


5. How about warranty and after-sale service?
1 year or 1500 working hours which occurs first. If misoperation caused component damage or normal wear and tear we can provide spare parts but will be charged, the cost depends on specific components.
