Place of Origin:
Shandong, China
Brand Name:
None
Certification:
CE/ISO9001: 2000/EPA/Euro 5/SGS
Model Number:
FW16
Contact Us

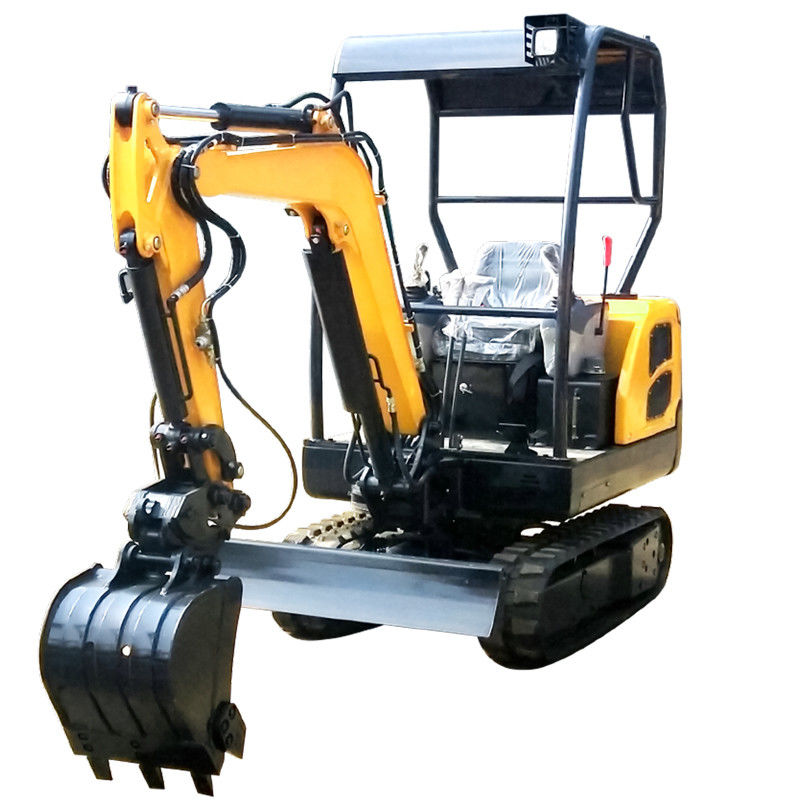

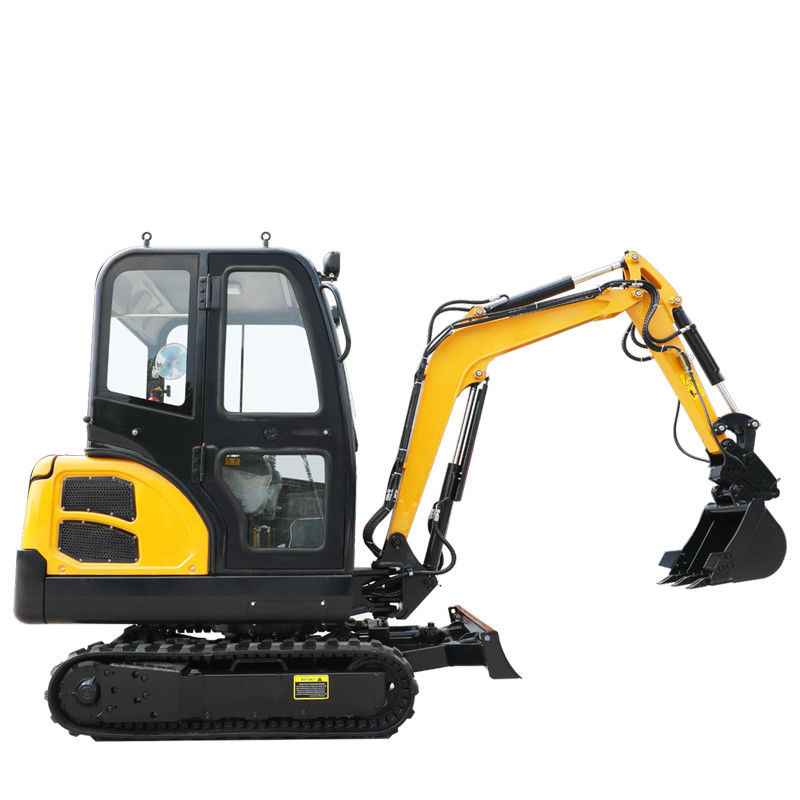

Hydraulic Crawler Chinese 1.6T Mini Excavator and Excavator Parts
The Mini Excavator has a time and place for best use. This means it can be better suited for certain jobs than a standard excavator. It is always important to choose an equipment type based on the project demands instead of personal preference. This helps to prioritize efficiency and productivity in all projects.
Specifications:
| Specifications | |
| Overall Dimension (L*W*H)/Delivery Length | 4325/1655mm |
| axle base(track length on ground) | 1100mm |
| Upper width | 990mm |
| Total height | 2272mm |
| Standard track shoe width | 180mm |
| track gauge | 920mm |
| Minimum ground clearance | 119mm |
| Tail turning radius | 790mm |
| Track grounding length | 1050mm |
| Track length | 1545mm |
| Weight | 1300KG |
| Bucket Capacity | 0.02 |
| Rated Power | 10.2KW/2500RPM |
| Swing Speed | 12RMP |
| Max. Grade Ability | 30° |
| Max. digging height | 2580mm |
| Max. dumping height | 1637mm |
| Max. digging depth | 2060mm |
| Max. digging distance | 3160mm |
| Min. rotation radius | 1711mm |
| Min. rotation radius Max height | 2048mm |
| Engine | KubotaD722 |
| Valve | China |
Quick Detail:
1. Powerful Engine, KOOP diesel engine/Euro V engine/EPA certified gasoline /Kubota engine for your choices;
2. Adopt the famous hydraulic Shut-off valve;
3. The boom and the bulldozer oil cylinder are equipped with high-strength cast steel protective plates;

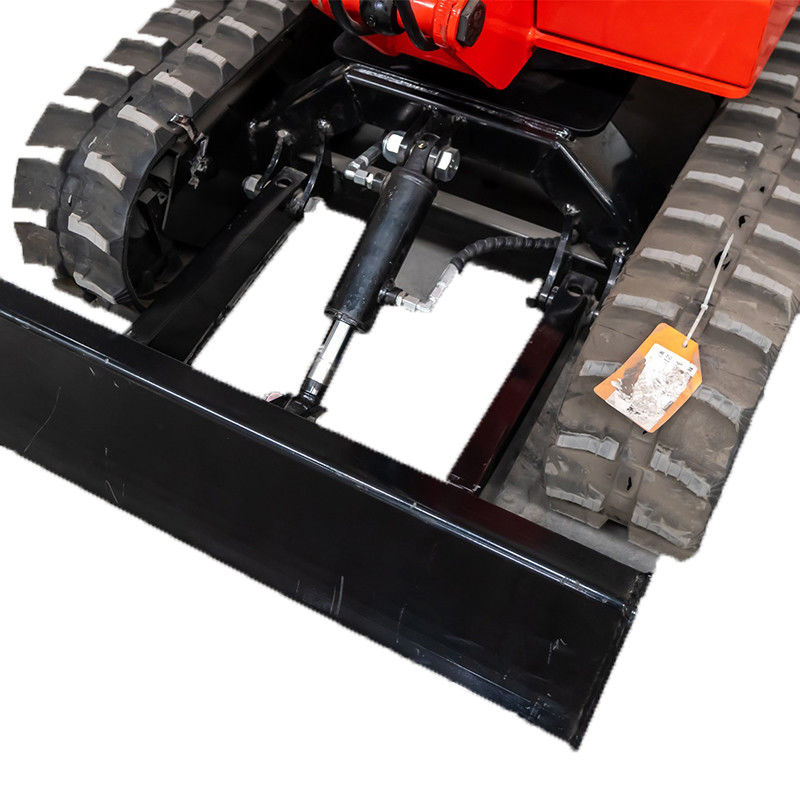

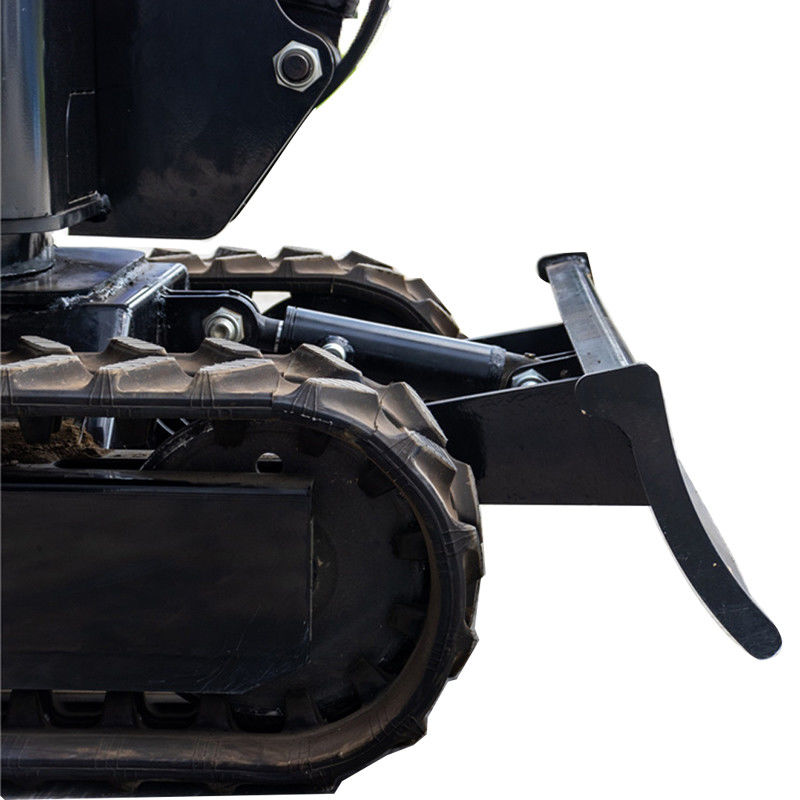

4. Dig-to-blade and dozer float features are easy to clean up;
5. Strong lift and dig performance helps you to get the job done faster;
6. Auger, grab, hydraulic hammer, and narrow bucket can be installed;

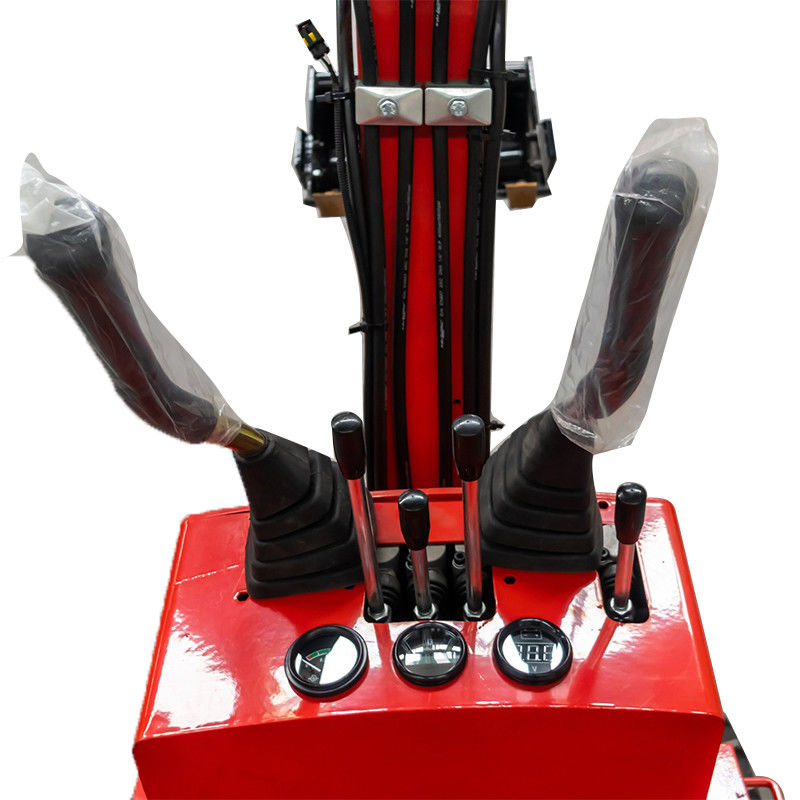

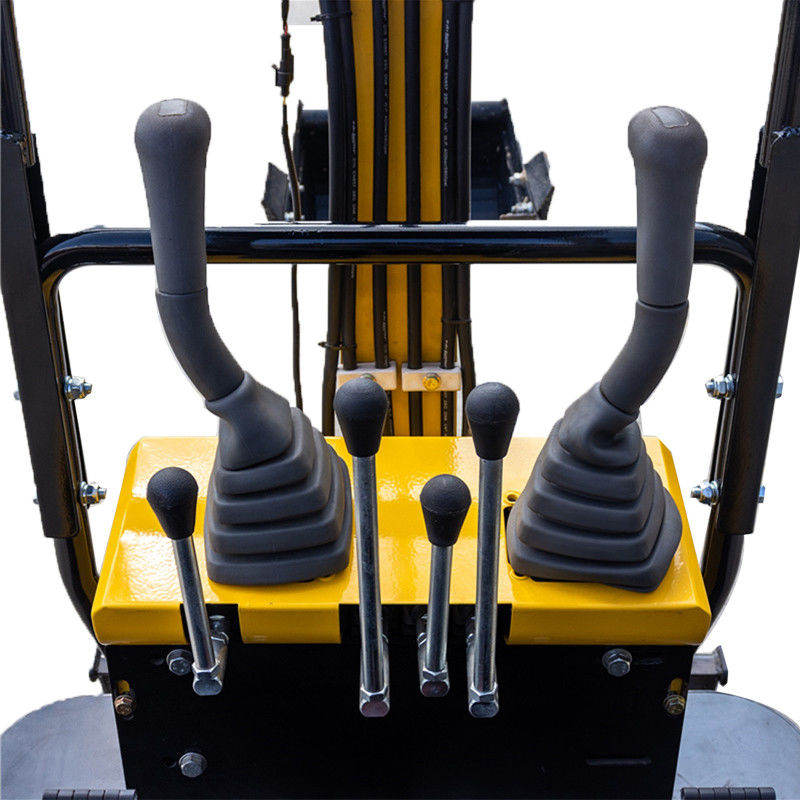

7. Hydraulic pilot operation is more flexible and convenient.
Applications:
The main uses of the excavator: in road construction projects to excavate trenches, in construction projects to excavate the foundation, in water conservancy projects to excavate ditches, canals, and dredging rivers, in quarries, open-pit mining, and other projects for the stripping and excavation of ore, etc.; in addition to gravel, coal and other loose materials can be loaded.
Operation: After replacing the working device, it can also be used for lifting, pouring, installation, piling, ramming, and pile pulling.
Our Service:
We support OEM/ODM service, and we have a professional development research department, designs, colors, and also products all can be acceptably customized, we have 3 times to supervise quality control through the production line before sending out. And quality and service is the first principle of the company. We keep 12 months warranty, beyond the warranty period, and all spare parts are offered to you at our cost price (not including freight). By the way, we support 24Hour customer service by email or phone. Please feel free to contact us, we are willing to become your friend and business partner.
